M-6009-A52XS
Retail
$11,550.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

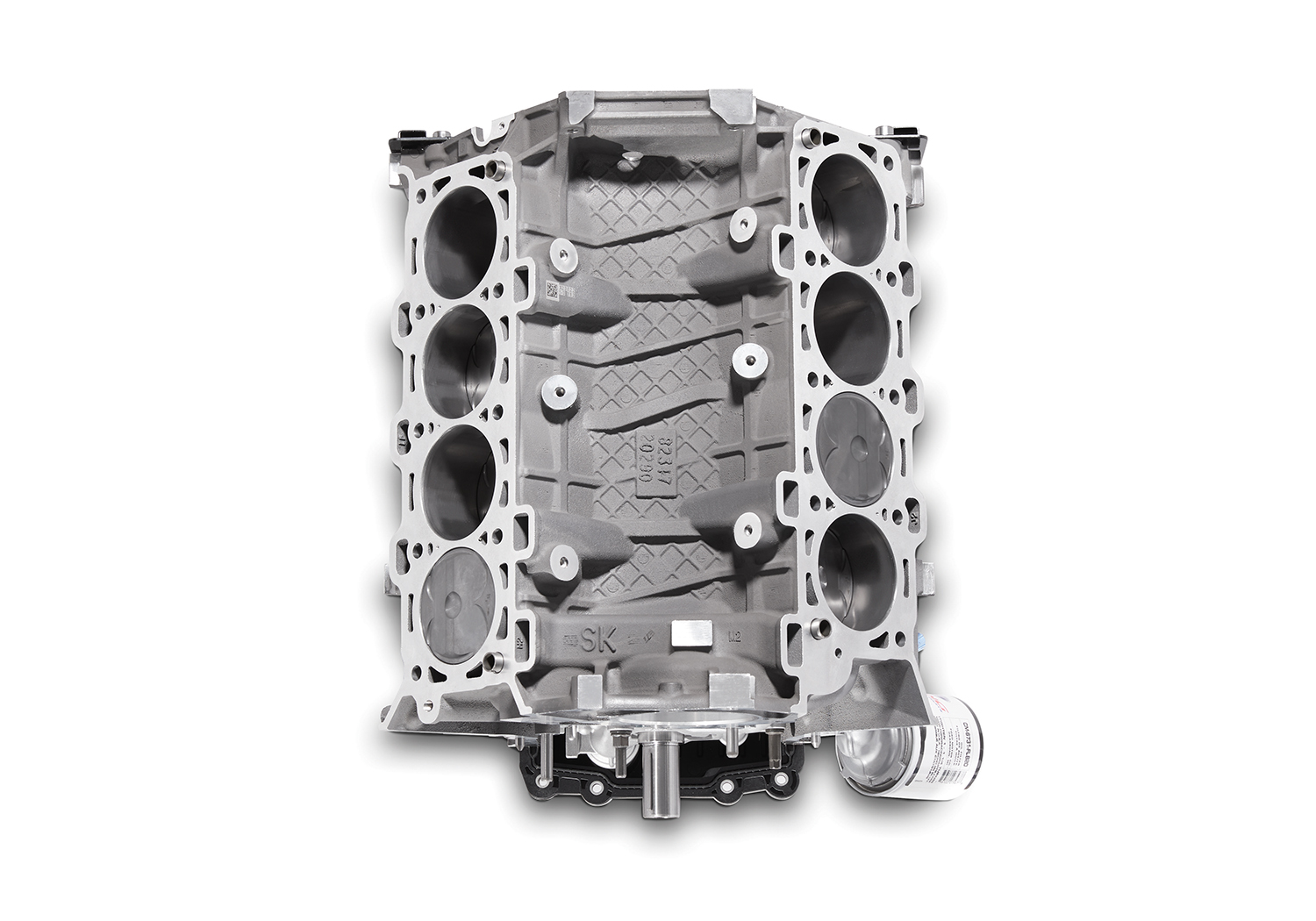

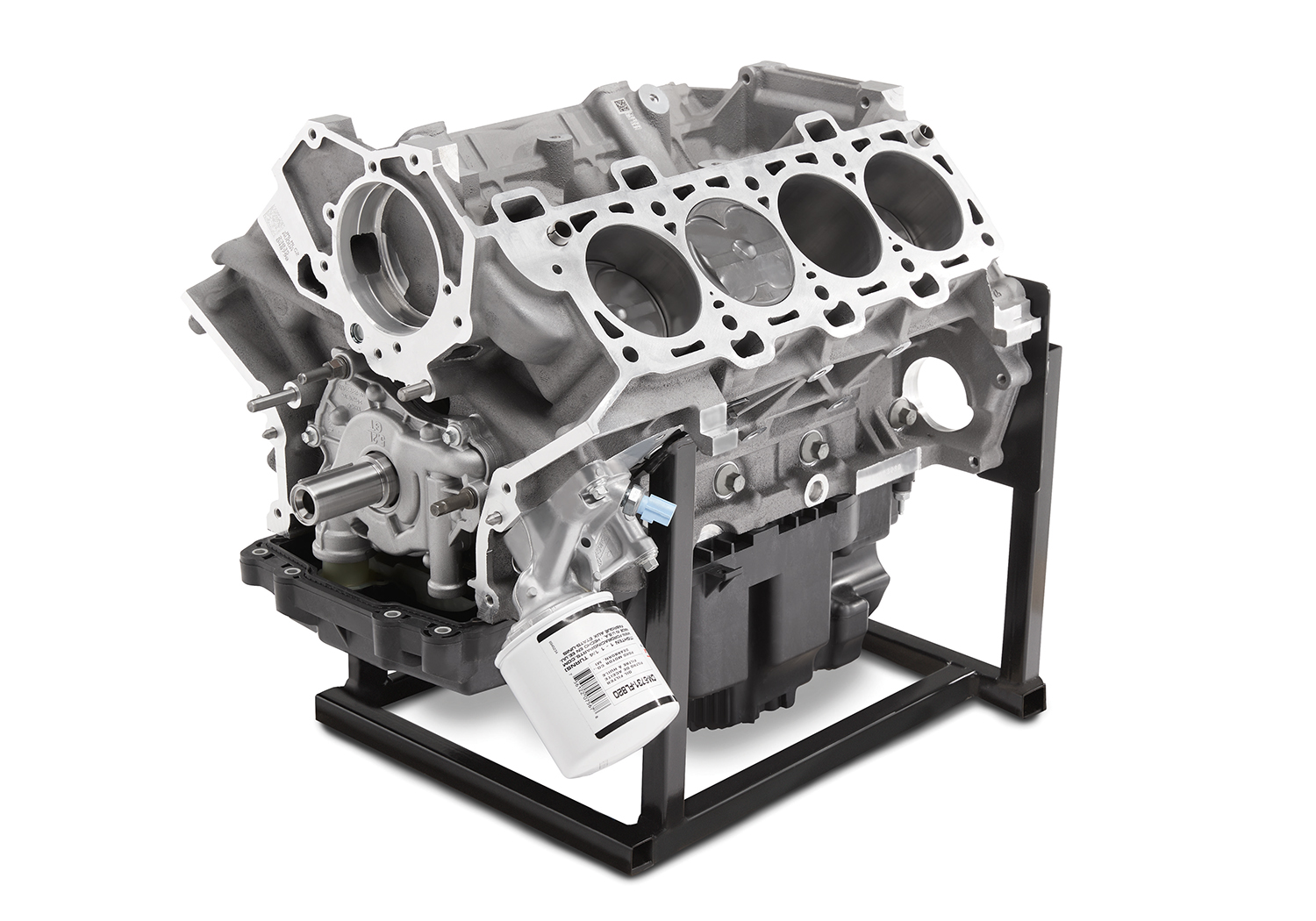

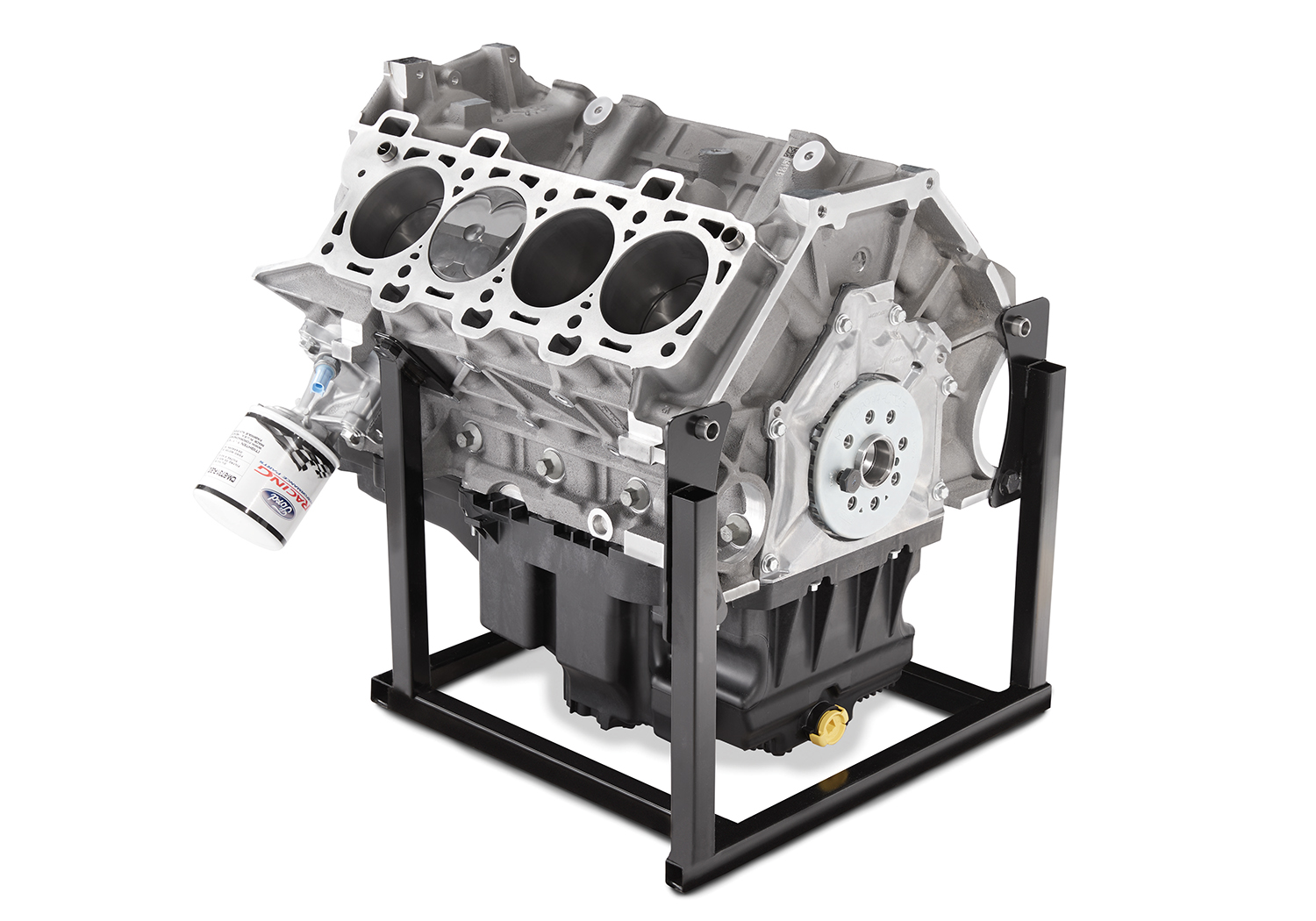

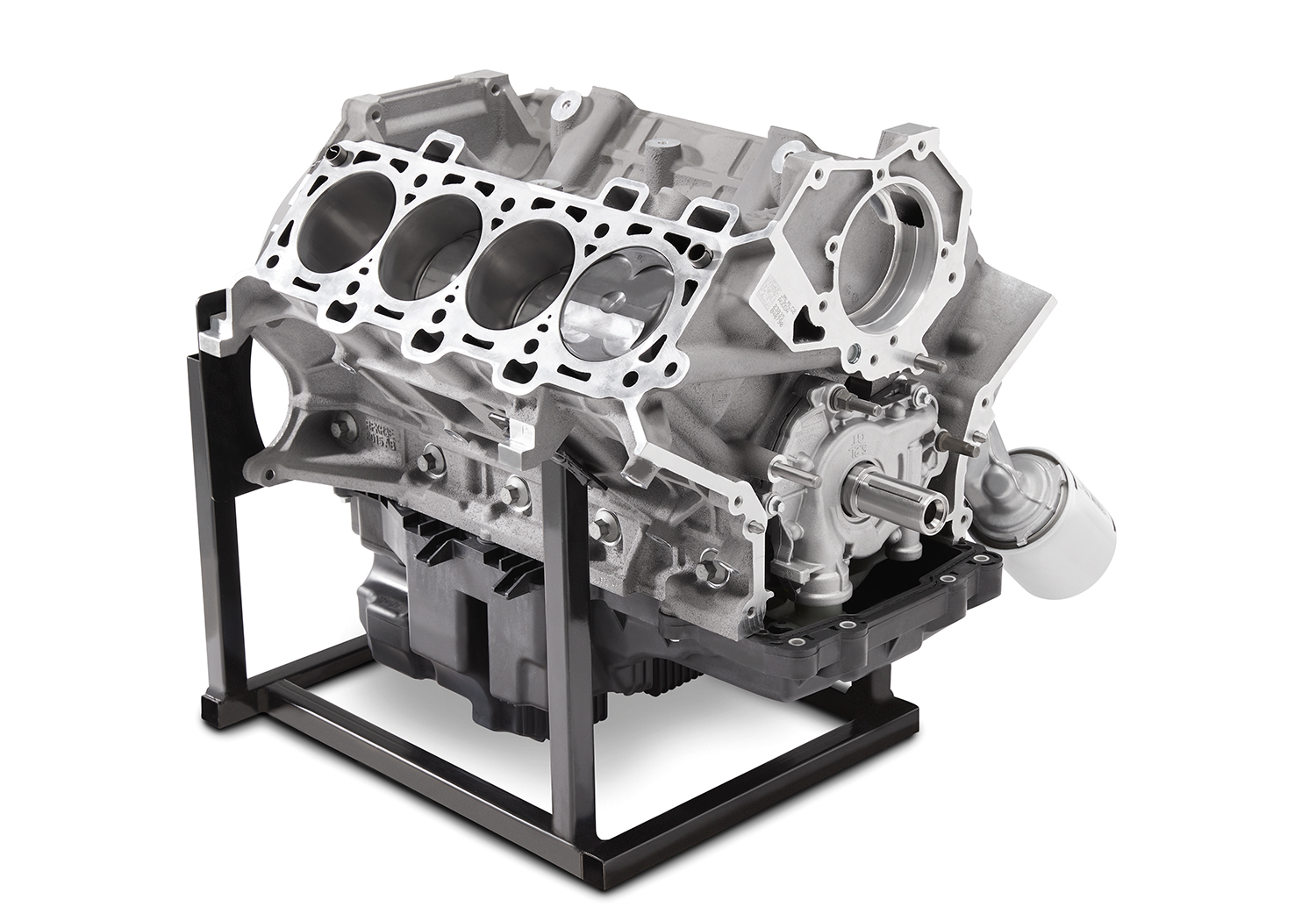

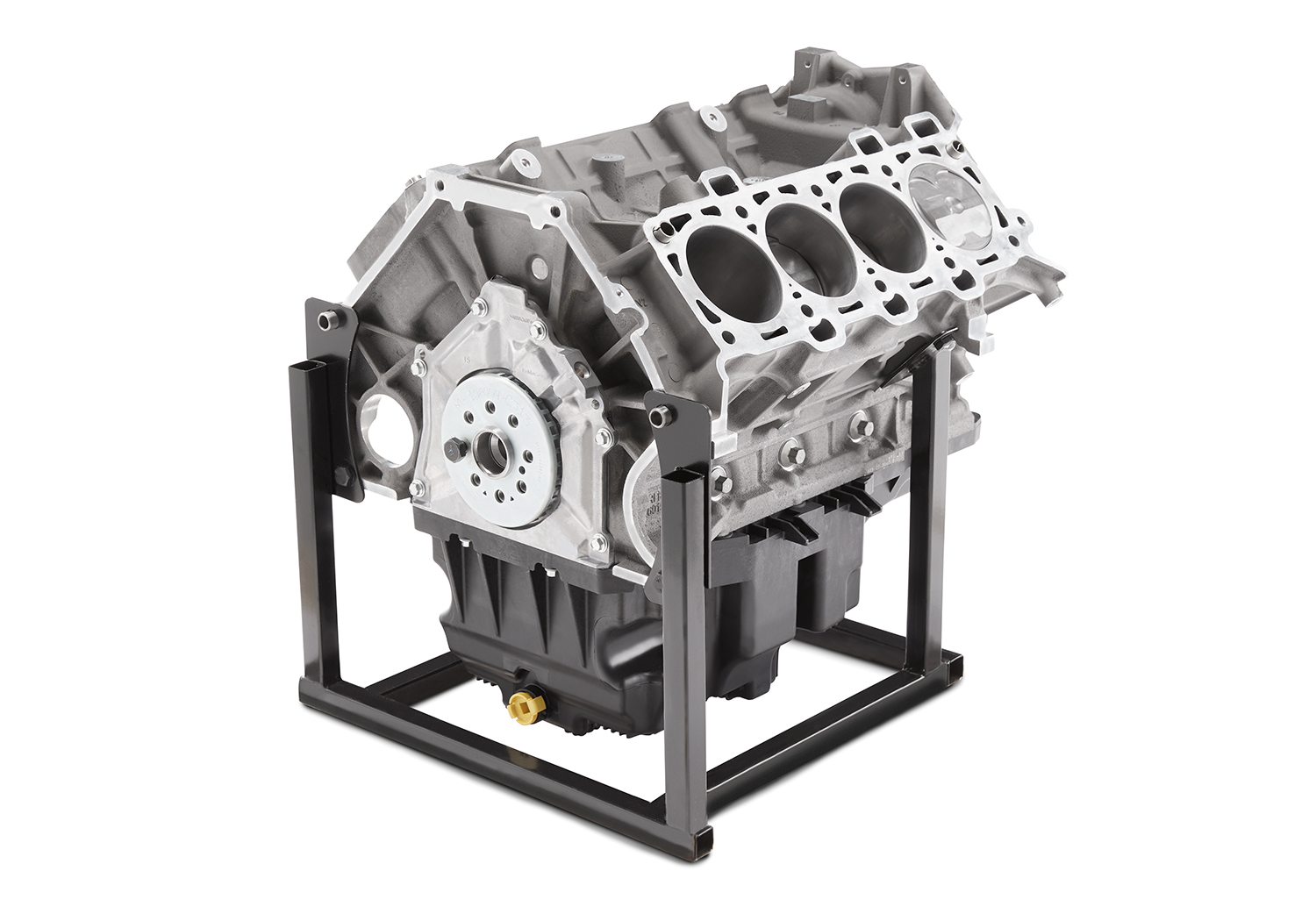

Ford Performance has taken the technology and hardware developed for the Shelby GT350 Mustang and created the ultimate, naturally aspirated, 5.2L cross-plane crankshaft crate short block.

Every Aluminator is hand assembled by the same technicians that built the Mustang Cobra Jet drag racing engines.  Premium aftermarket components are used to ensure durability, like;  Manley® connecting rods, ARP® rod bolts, Mahle® forged pistons,  and billet oil pump gears.

  • Short block from the M-6007-A52XS engine
  • Excellent basis for custom Coyote based engine builds
  • 5.2L
  • 317 Cubic Inches
  • 12:1 Compression Ratio when combined with 5.2L cylinder heads
  • Mahle® hard anodized forged pistons with low friction coating
  • Mannle® H-beam connecting rods with ARP2000® bolts
  • Ford Performance M-6303-M52B Forged steel cross-plane crankshaft
  • Uses Ford Performance M-6010-M52B Shelby GT500 cylinder block
  • Ford Performance M-6600-M50A billet steel gerotor oil pump gear set
  • Ford Performance M-12A227-CJ13 high RPM pulse ring
Part Type
Engine: Short Blocks
Warranty Availability
Package Dimensions
43" x 44" x 46"
Package Weight
304 lb(s)
UPC Code
756122019764
Country of Origin
United States
