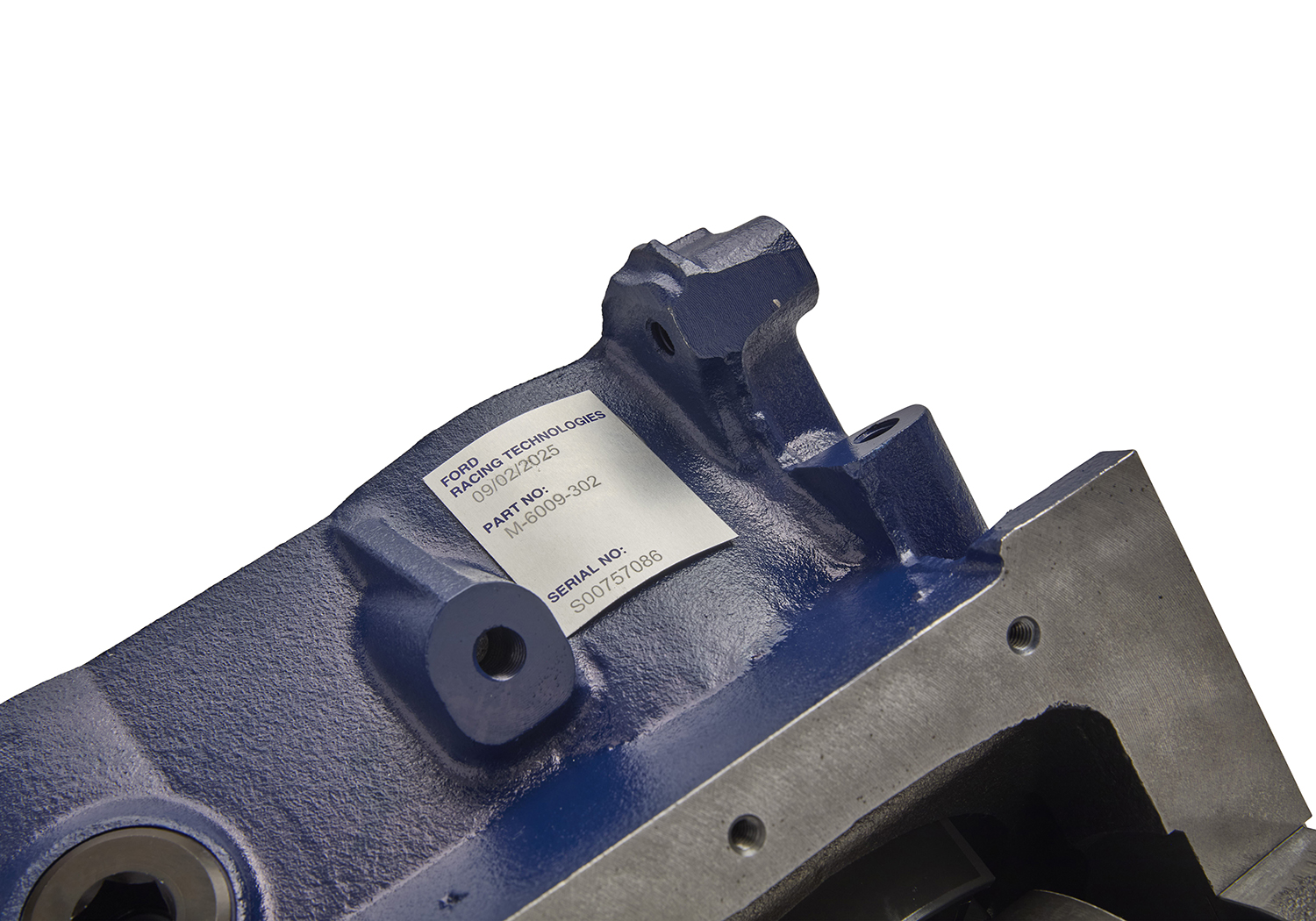

M-6009-302
Retail
$5,200.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

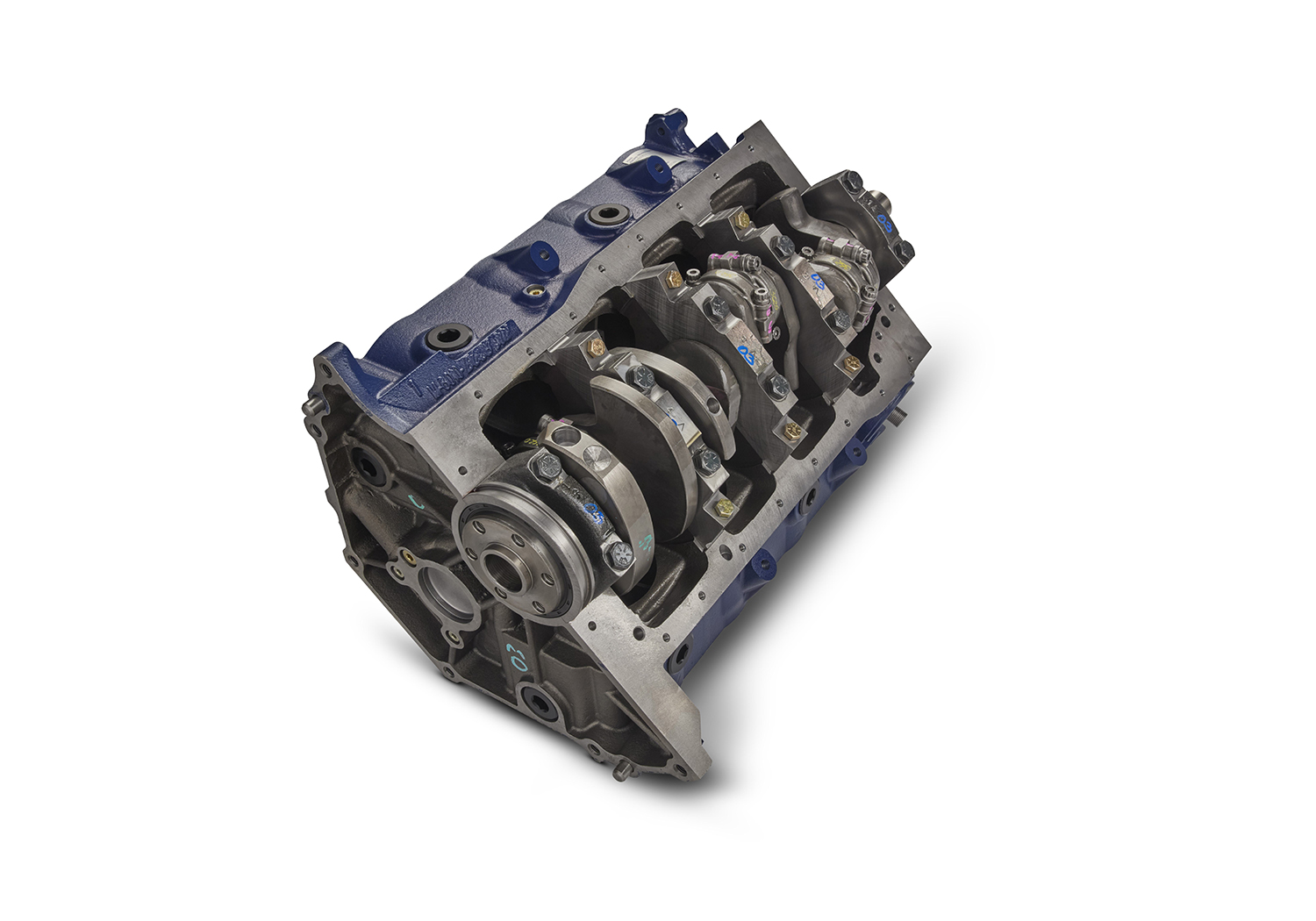

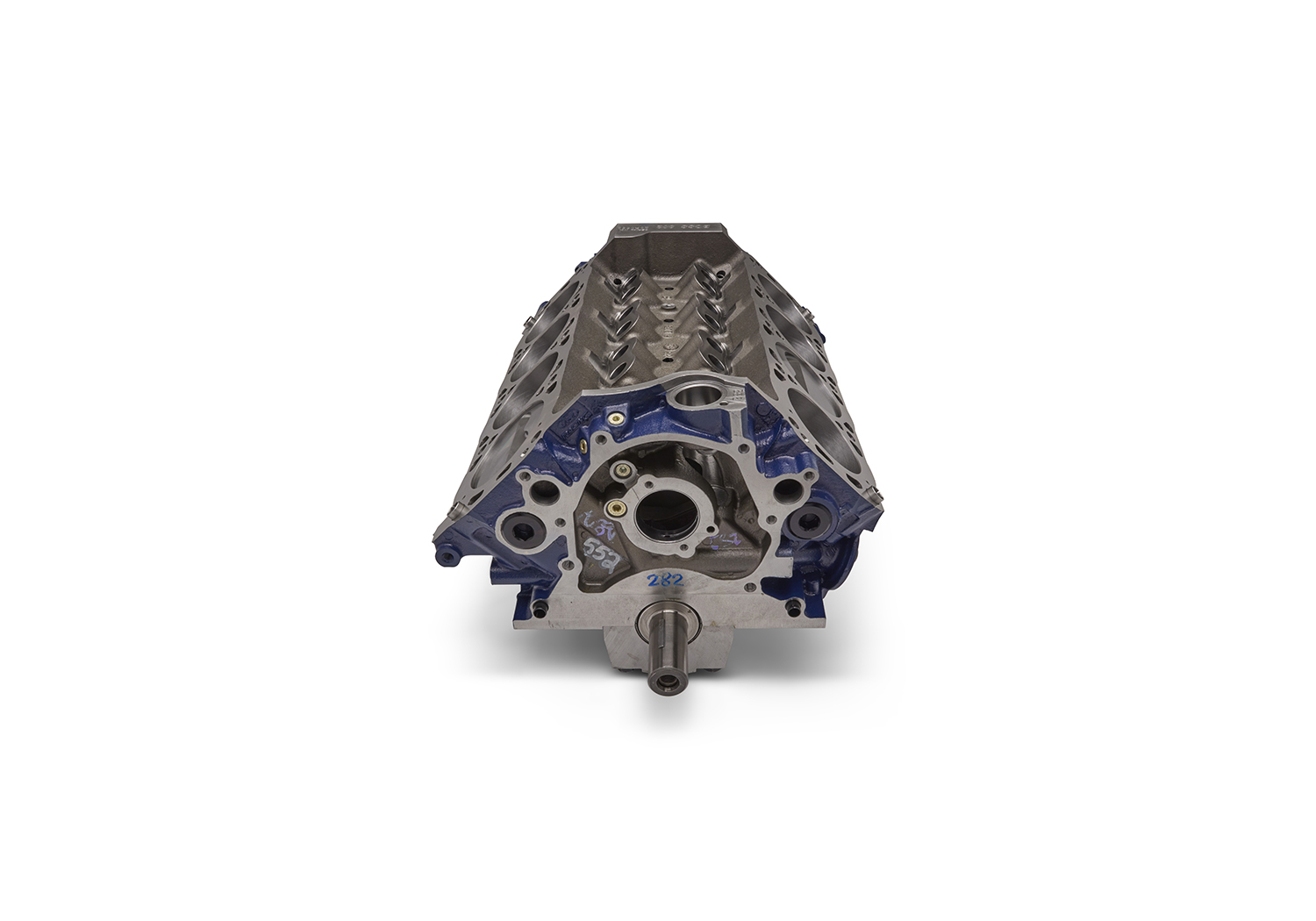

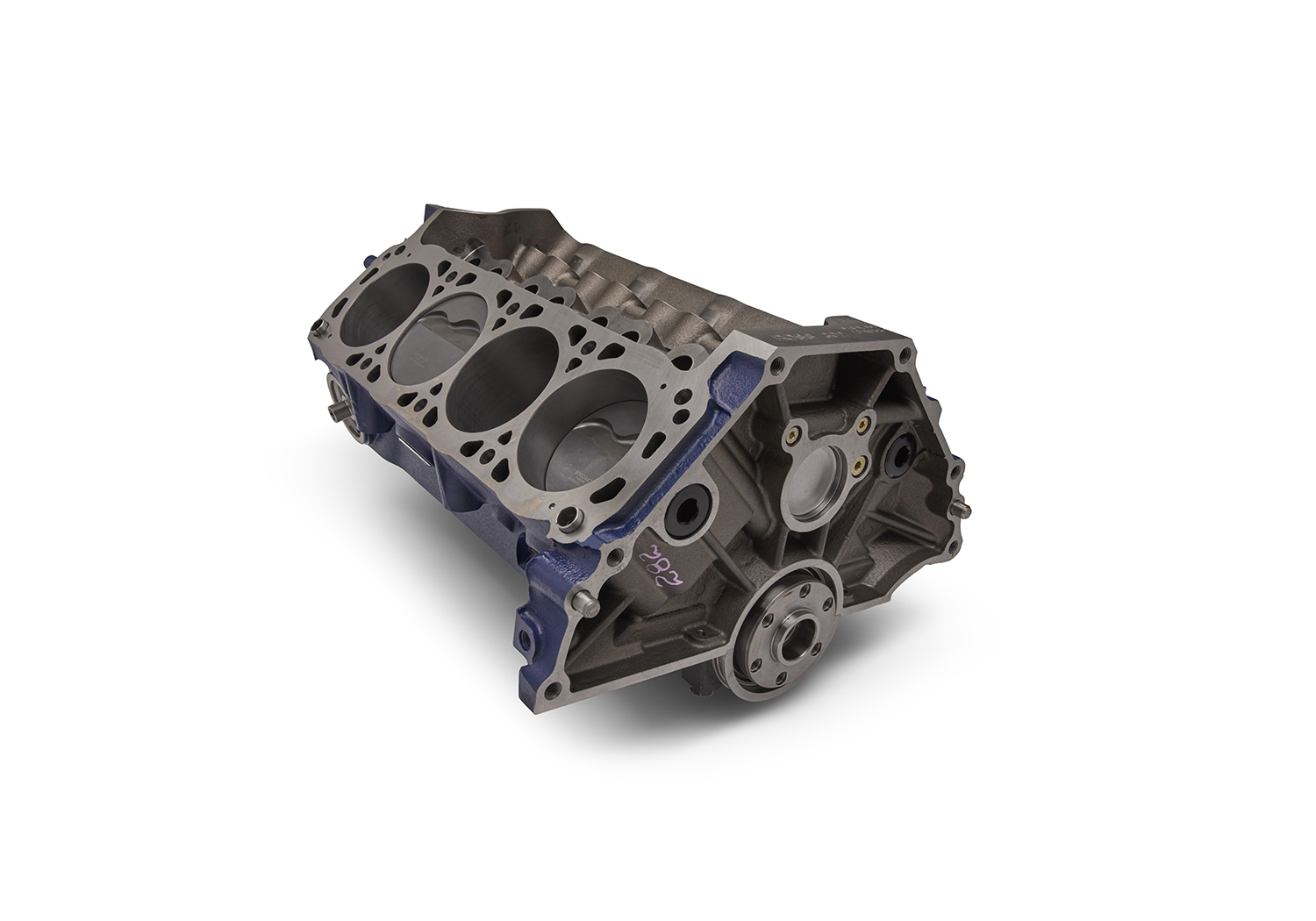

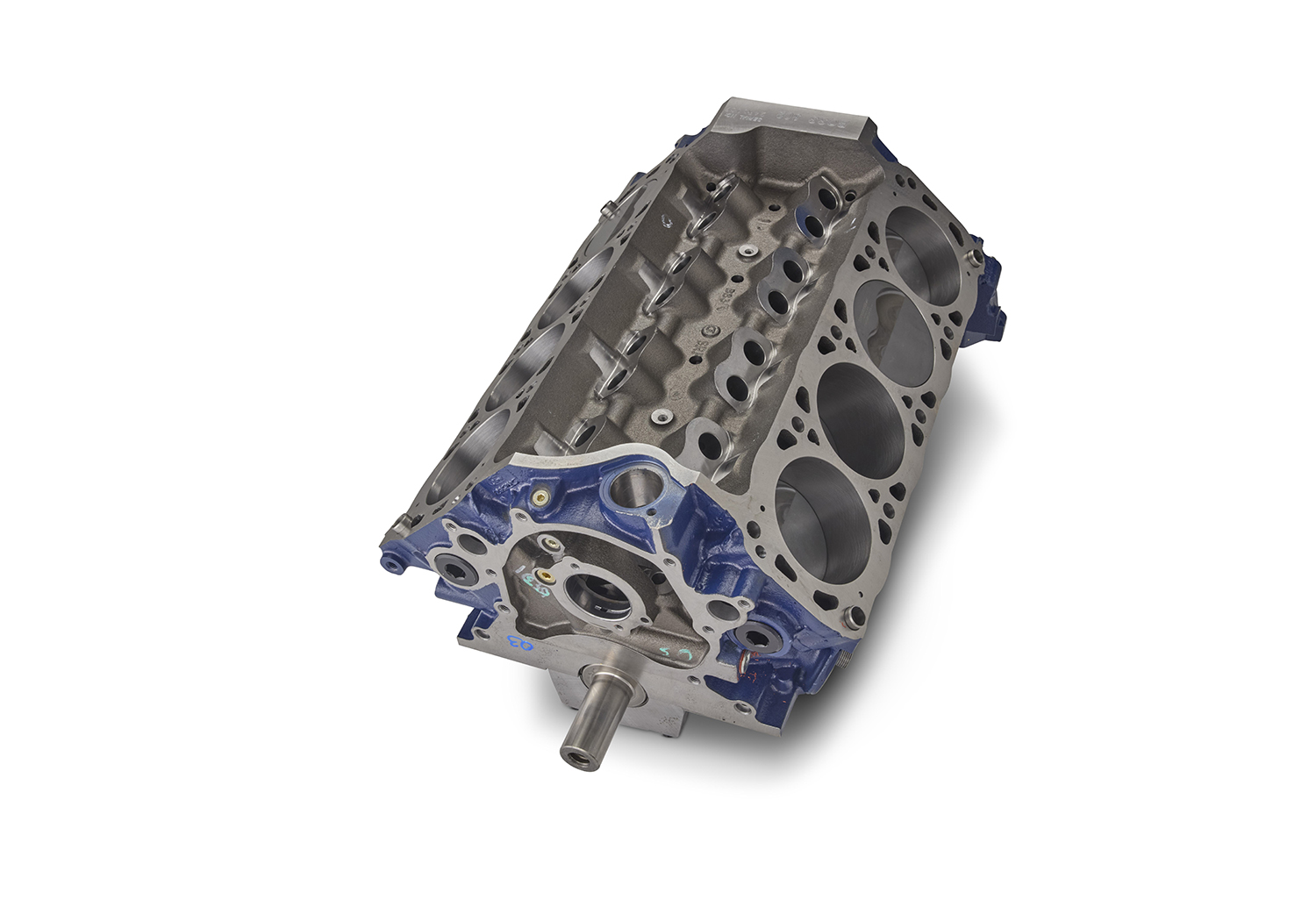

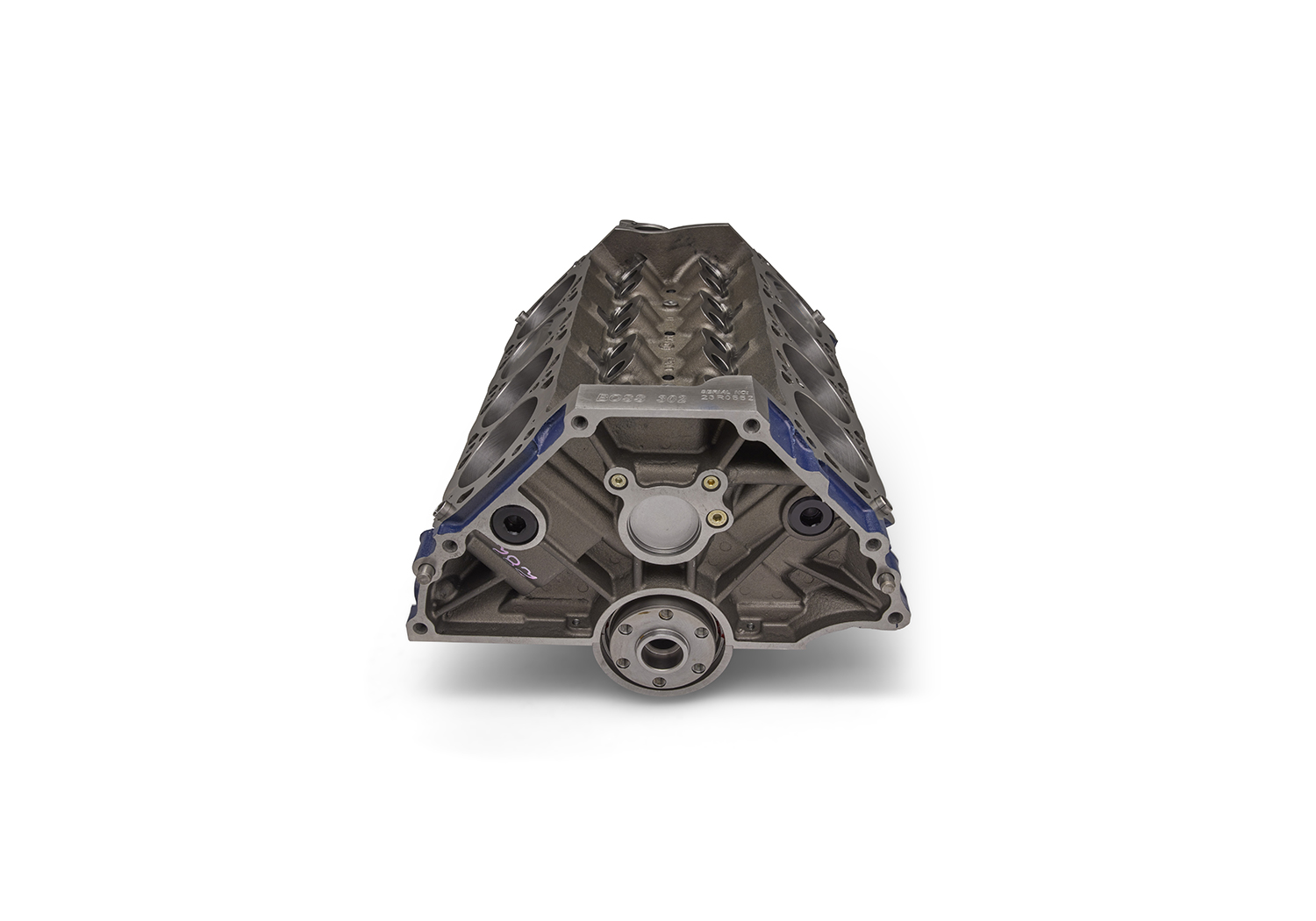

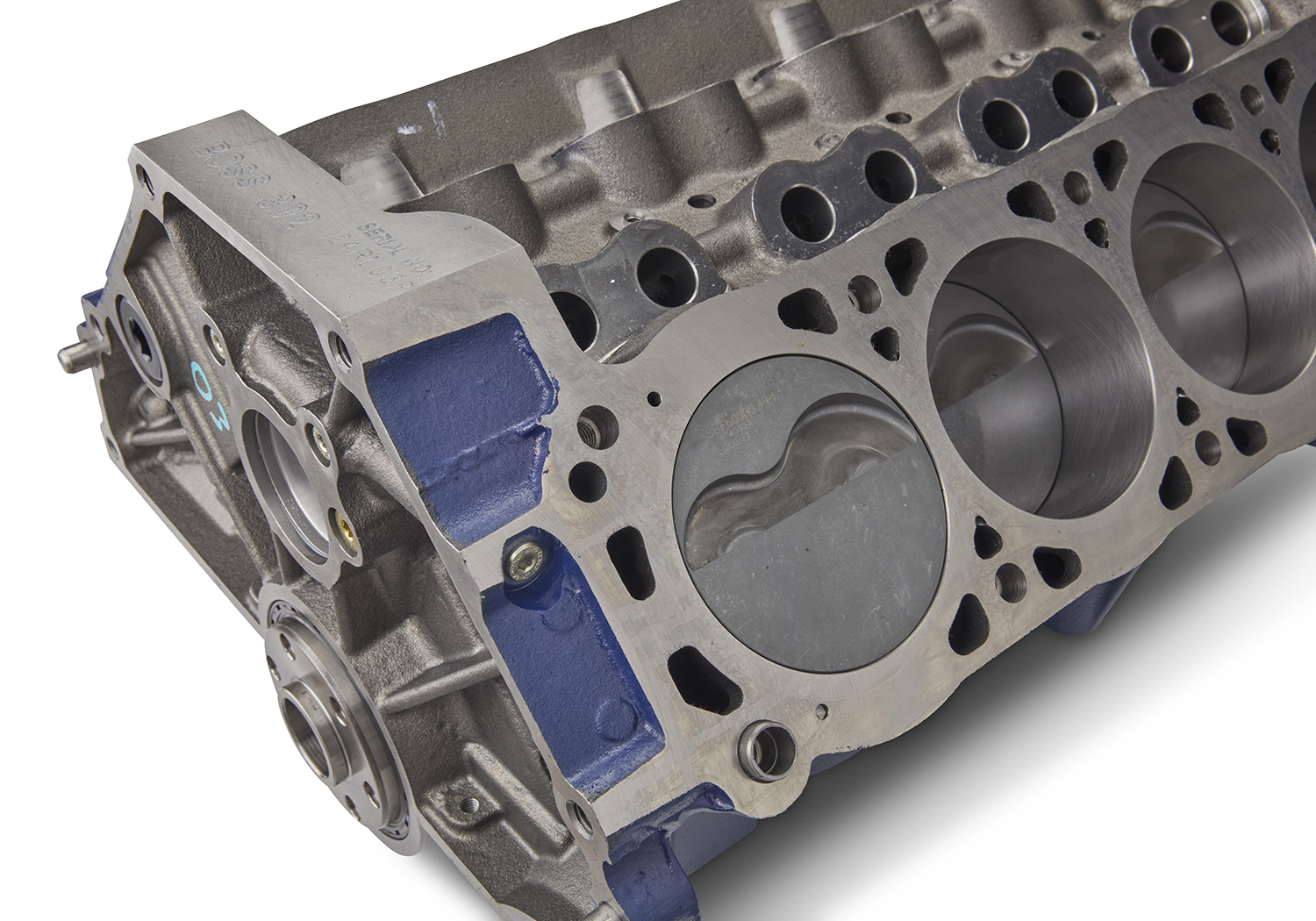

The Ford Performance 302 short block lets you build it your way by adding your choice of heads, cam, intake, and oil system. All forged internals make the Ford Performance 302 short block an excellent value and a solid foundation for any 302 build. Ford Performance short blocks feature race quality components at competitive pricing.
  • 302 Cubic Inches
  • bore x stroke (inches): 4.000" bore x 3.000" stroke
  • 9.0:1 compression ratio (nominal) with 64cc combustion chamber cylinder heads
  • Forged pistons
  • Forged steel connecting rods

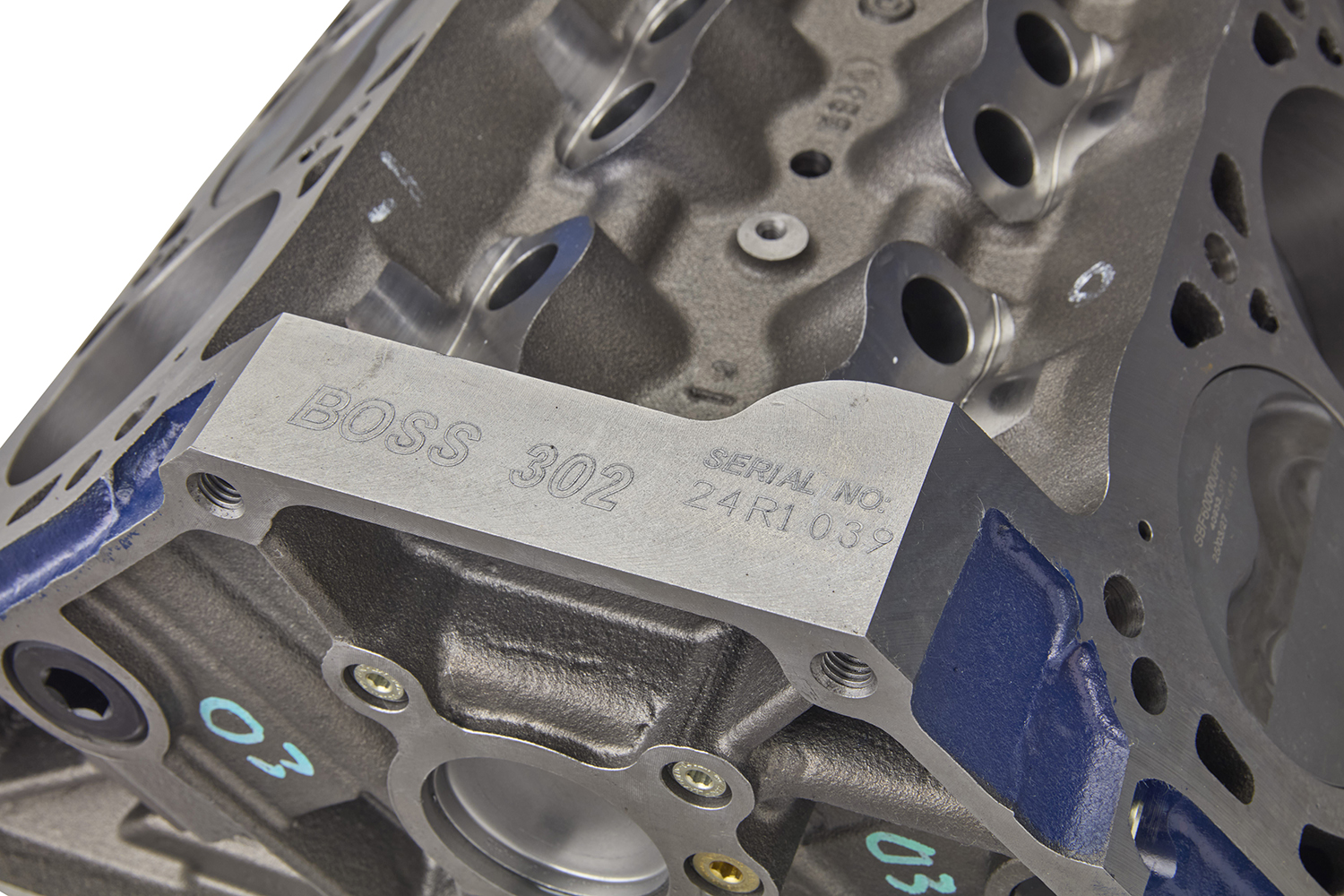

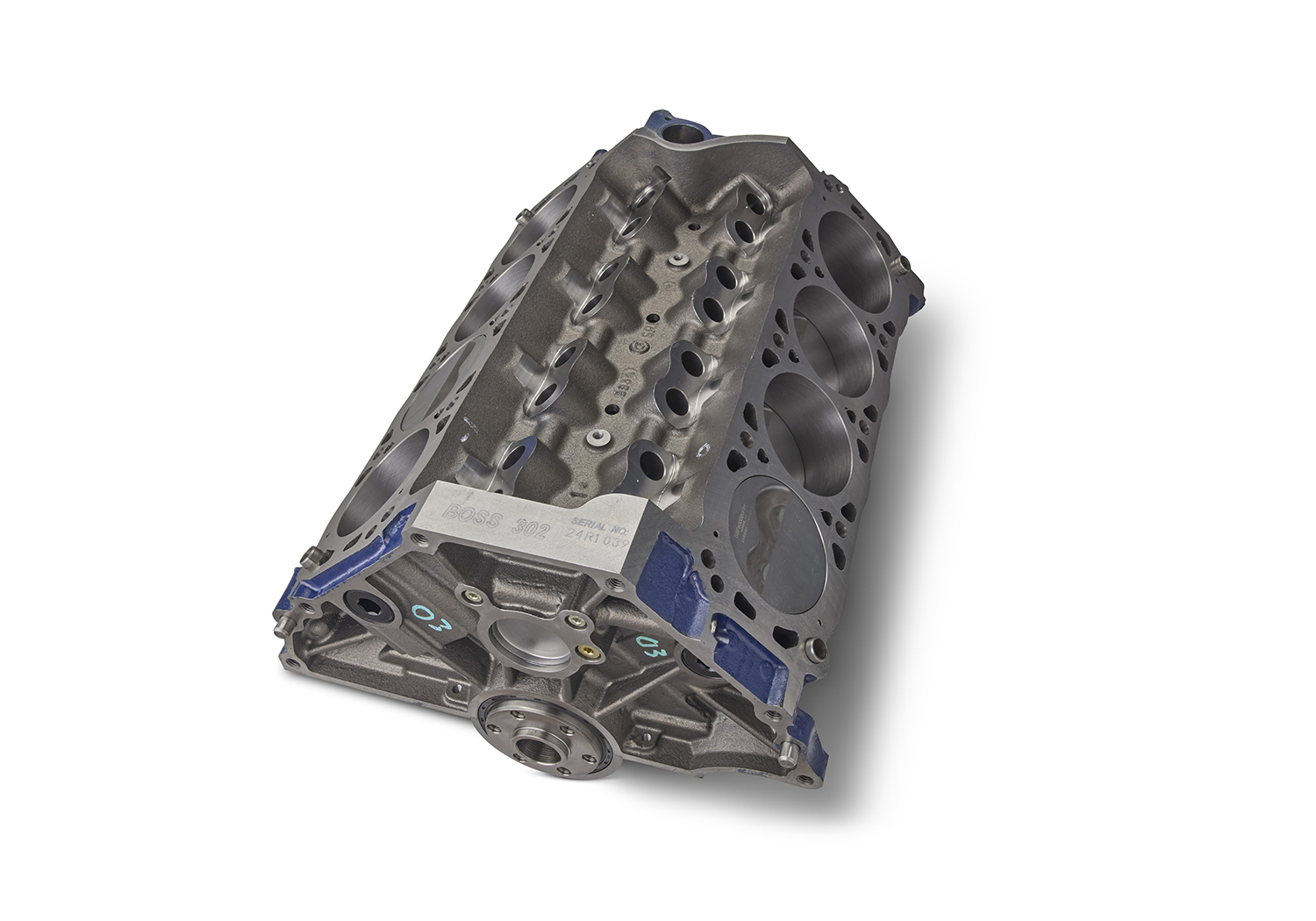

  • BOSS 4-bolt main block M-6010-BOSS302 8.2" deck height - cast and machined in the USA
  • Forged steel crankshaft
  • Neutral balanced rotating assembly - requires 'zero' balance flywheel or flex plate
  • Most aftermarket performance cylinder heads are compatible with this short block.  Ford Performance short blocks are built with pistons designed for 20 degree valve angle heads and will fit stock or most spread valve guide centerlines.
  • Designed for M-6049-X306//X307/Z304DA/Z304P and N351 cylinder heads. Not designed for production 302/351W or M-6049-Y302/Y303/X302/X303/X304/X305 cylinder heads
  •  Works well with Ford Performance cylinder heads M-6049-Z2 and M-6049-X2
  • Can be used in kit cars, street rods, Mustangs, Fox-bodied cars, and trucks
  • Built with all NEW Parts
  • Built with current available parts. Photo and specs may vary.
  • Engine installation and tuning tips can be found HERE

***Contact the Ford Performance Techline for recommended finishing components***
Part Type
Engine: Short Blocks
Warranty Availability
Not Available
Package Dimensions
25" x 24" x 31"
Package Weight
271 lb(s)
UPC Code
756122025673
Country of Origin
United States
