RAPTOR 3.5L 450HP ECOBOOST CRATE ENGINE
M-6007-35TA
Retail
$9,350.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

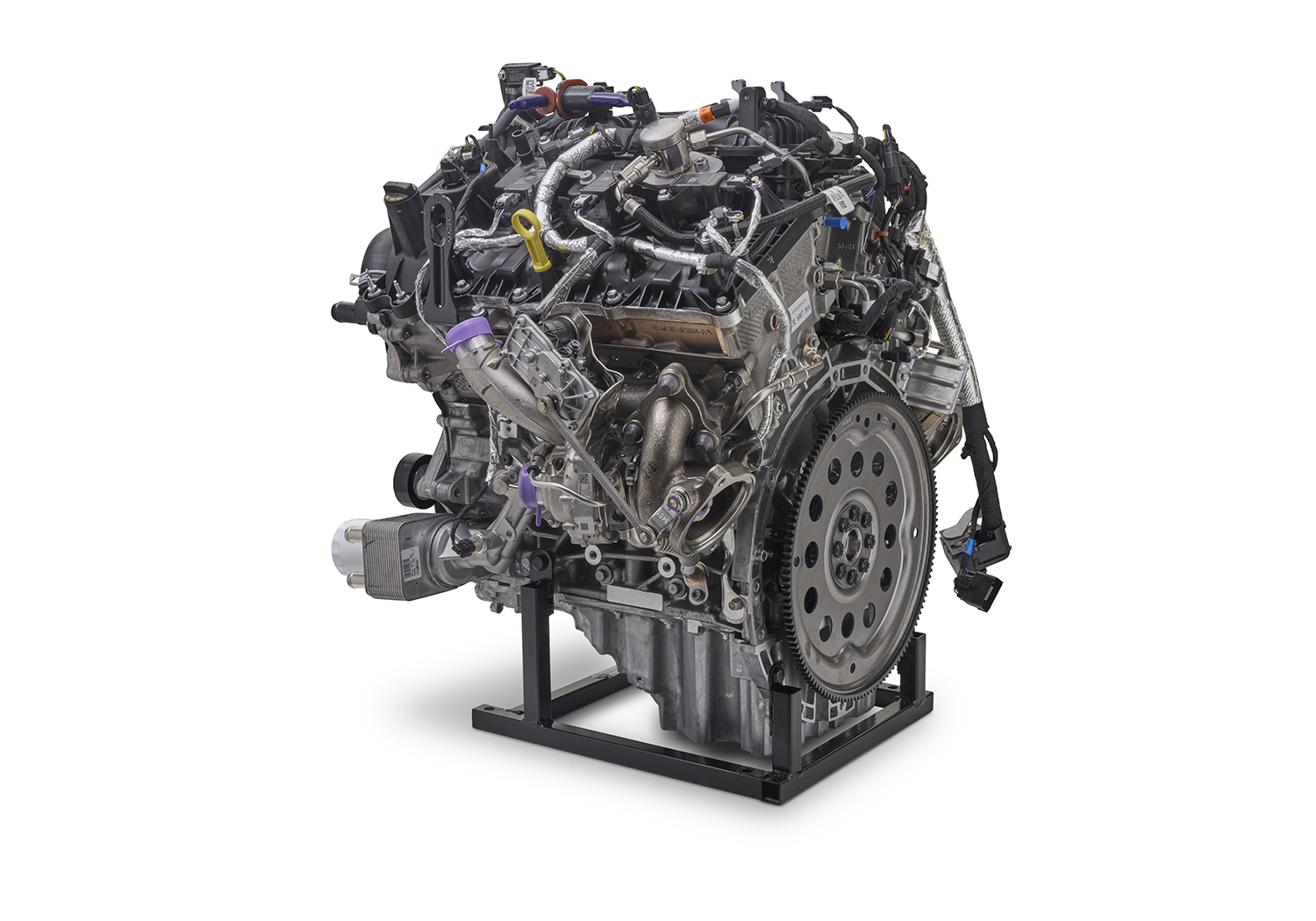

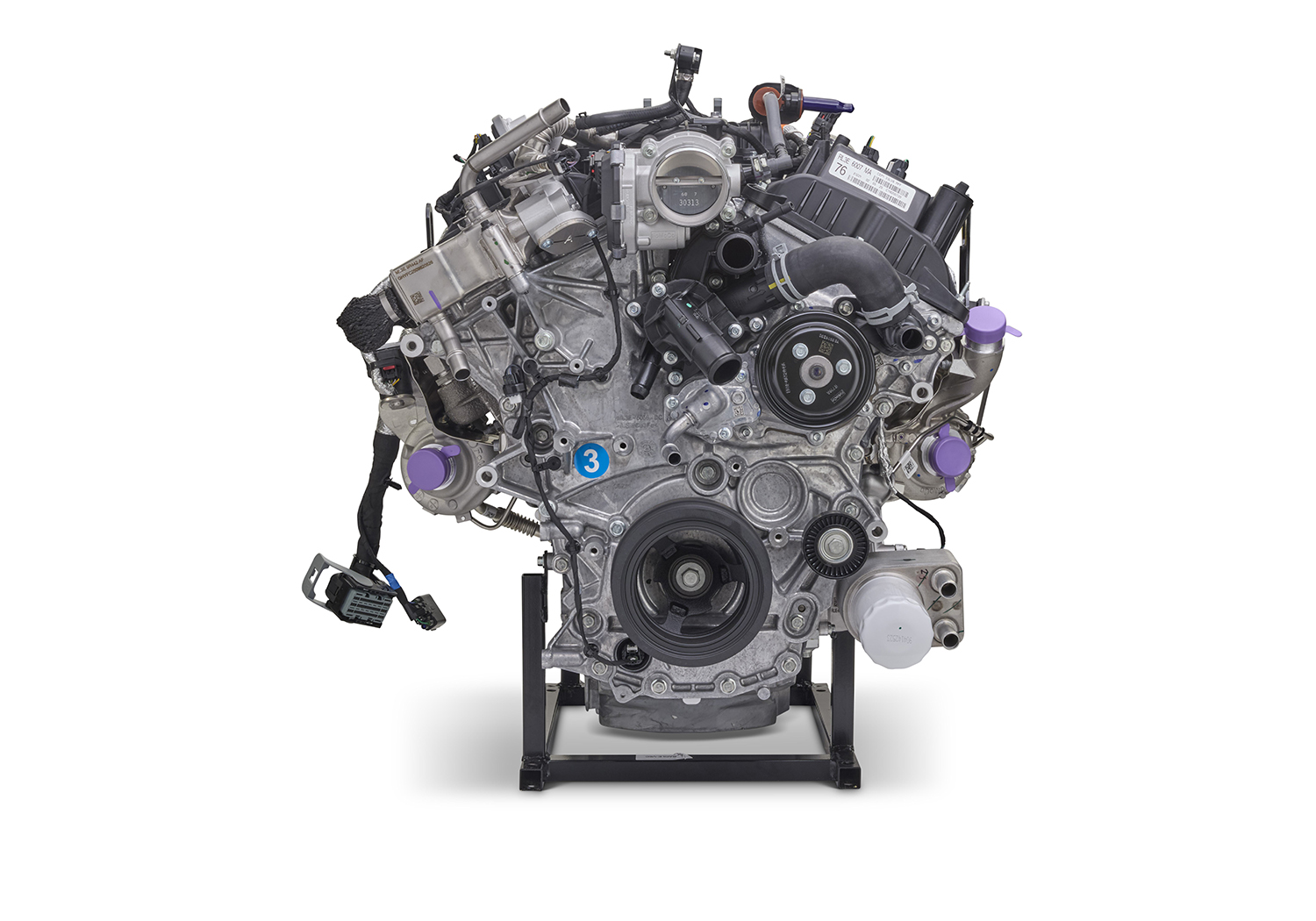

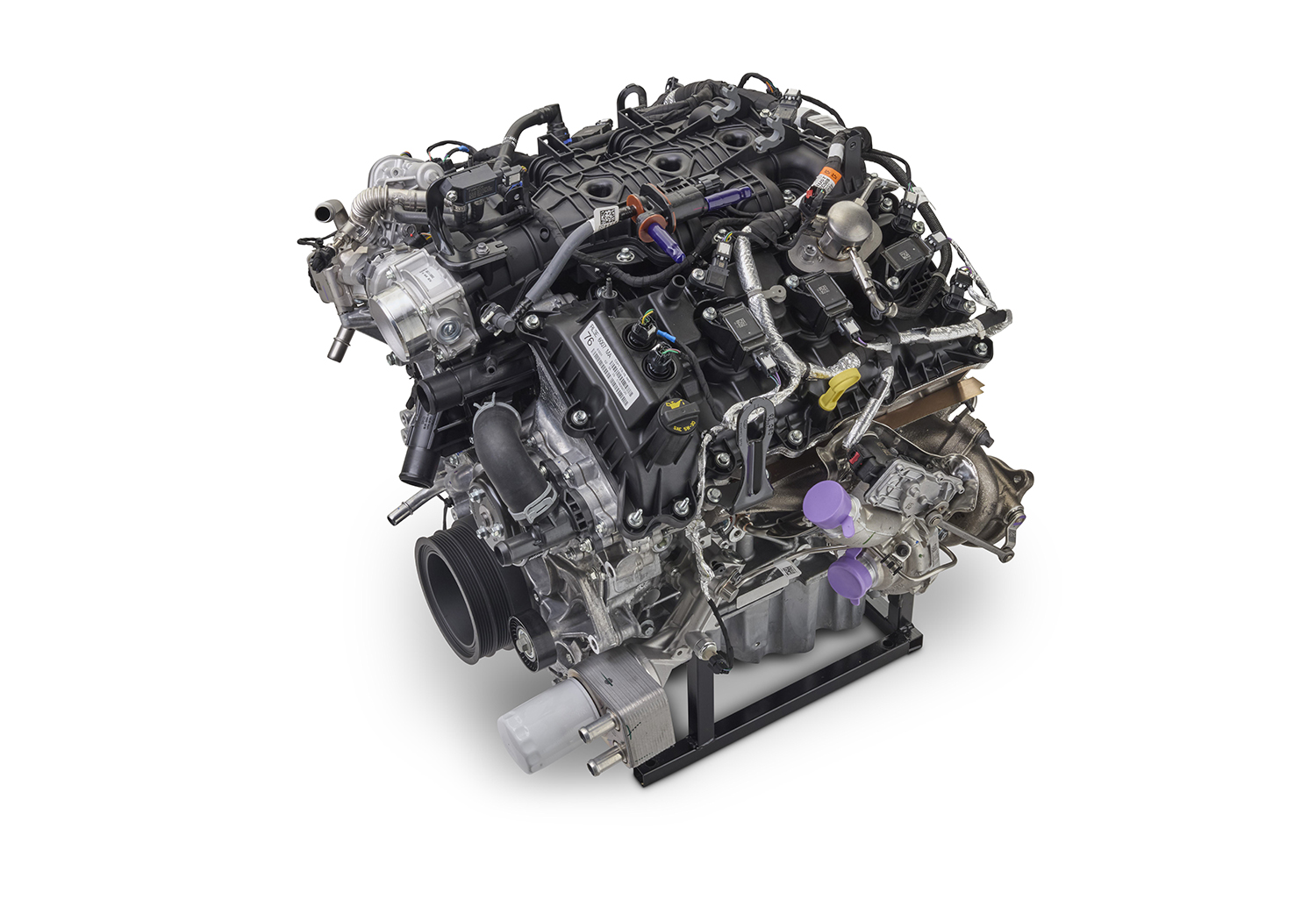

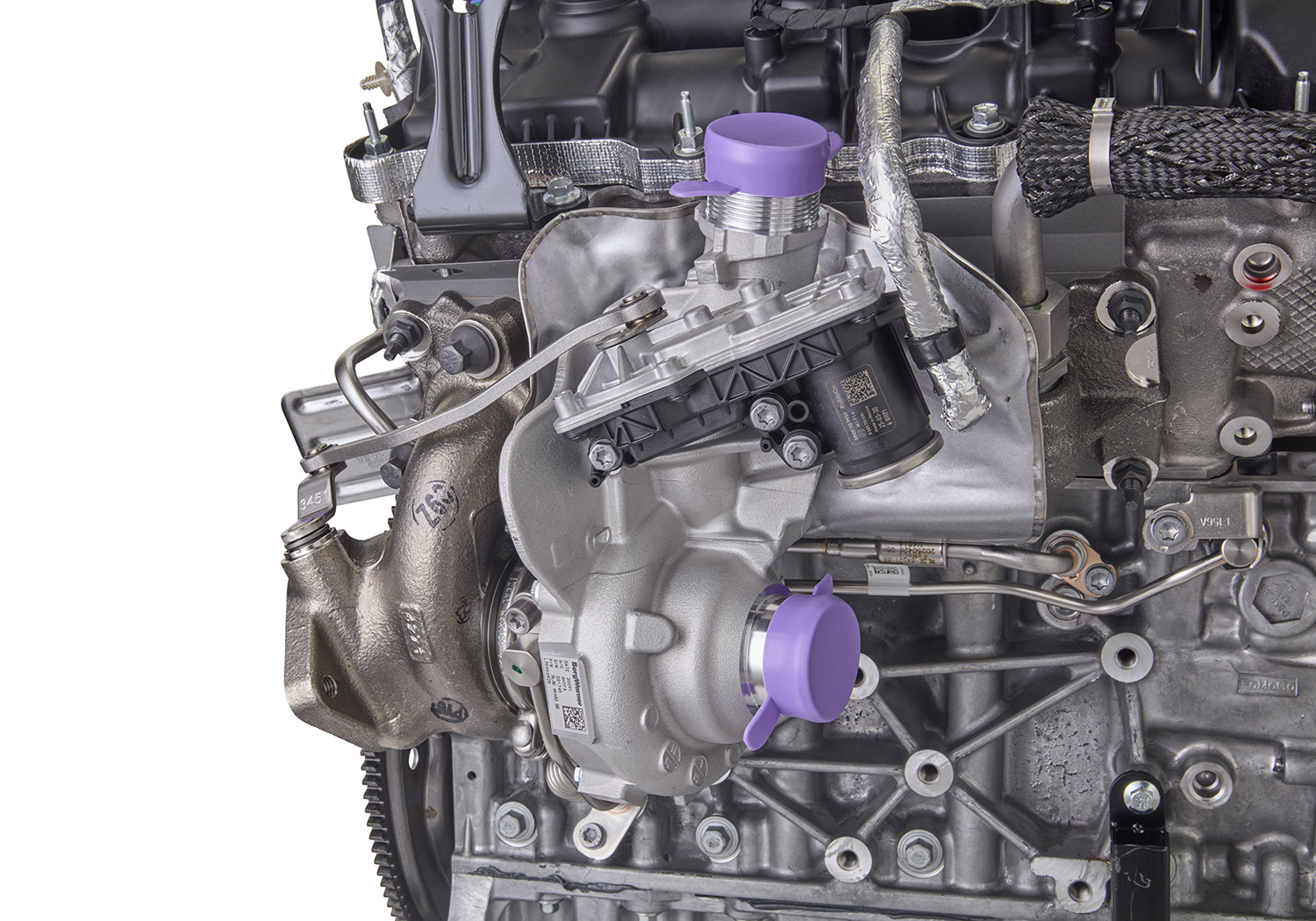

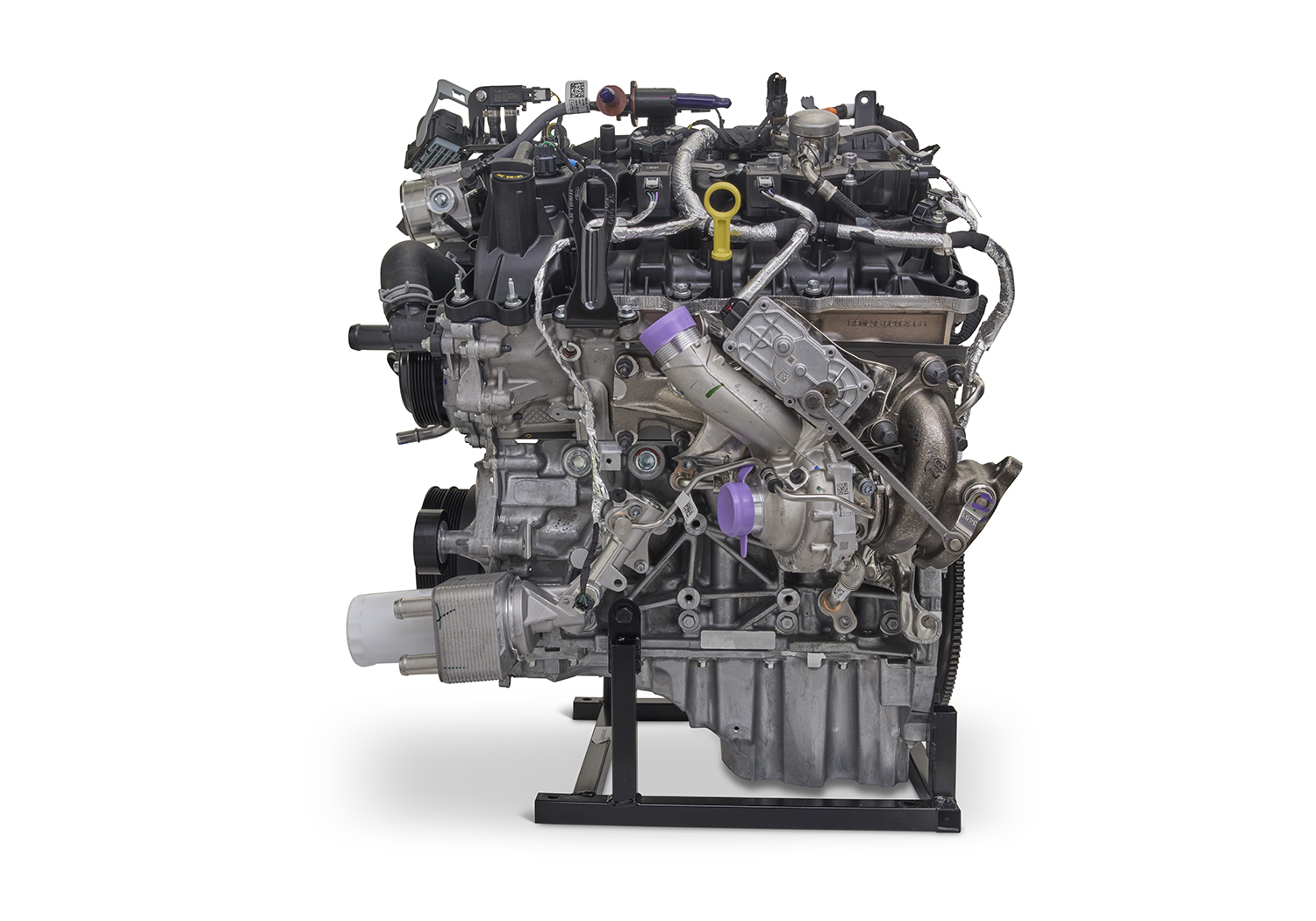

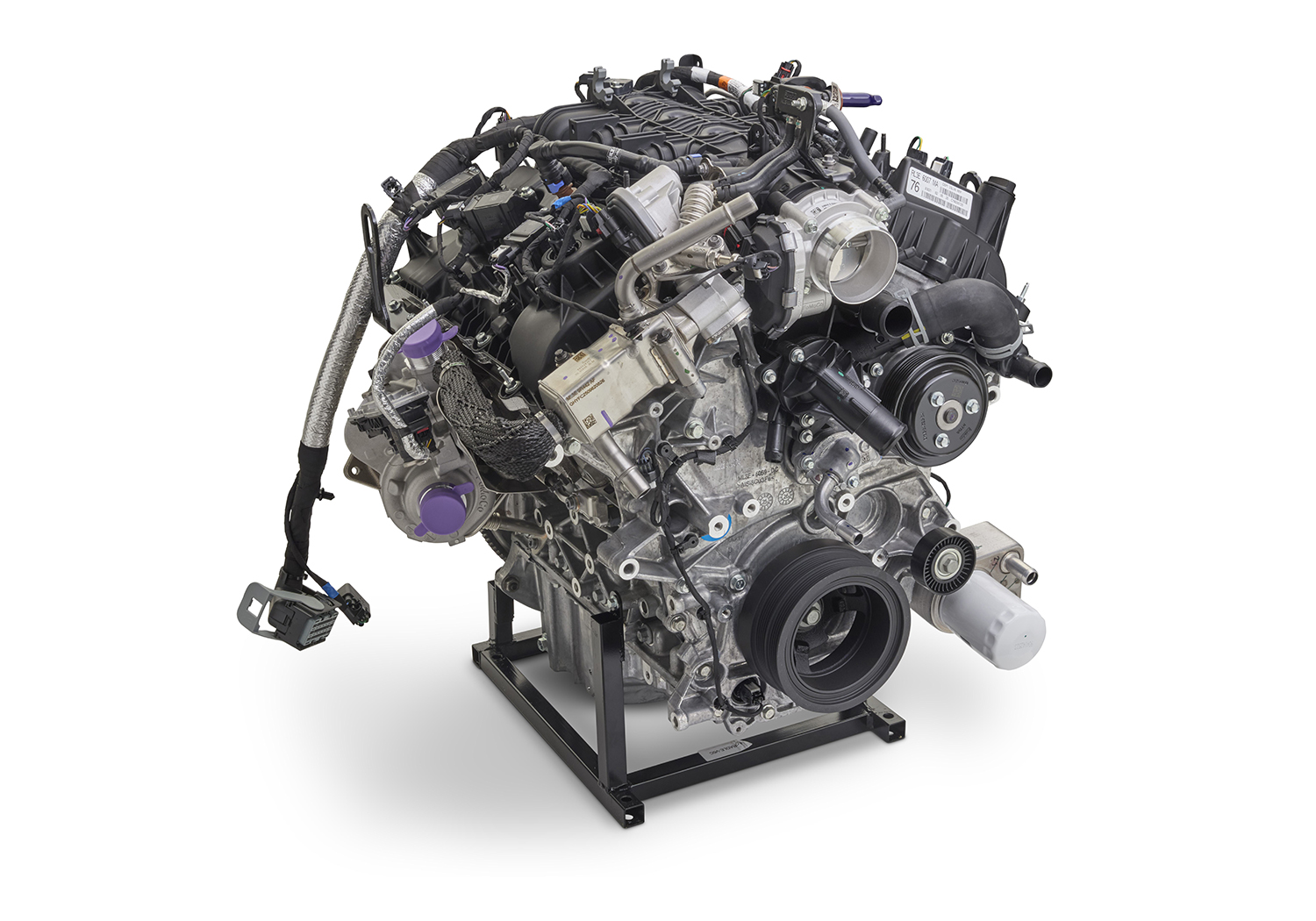

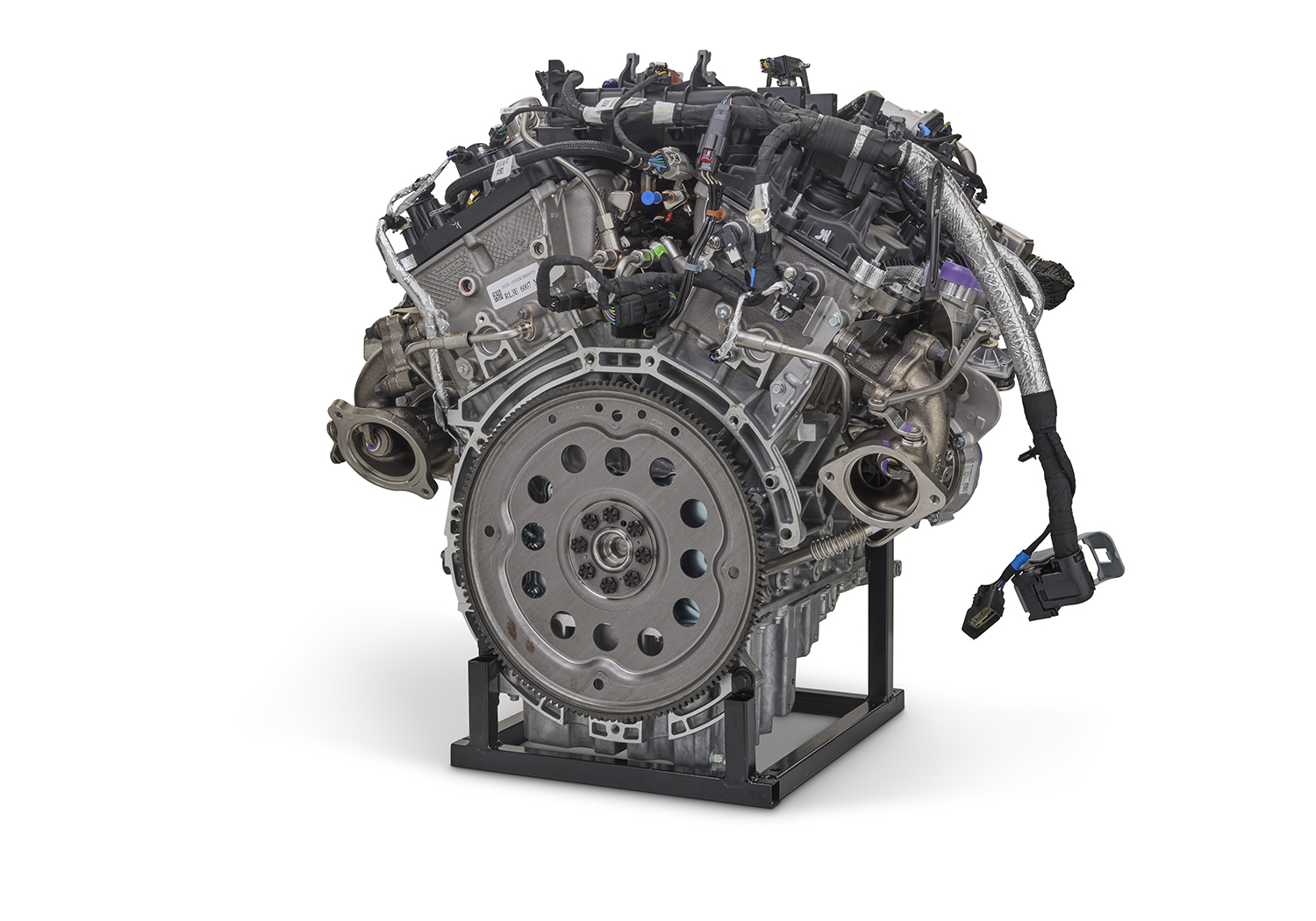

The 2024 Raptor 3.5L twin turbo EcoBoost engine is now available as a crate engine.
***No Ford Performance control pack available. Builder must source engine controls separately***
- 450 Horsepower @ 5,520 RPM
- 510 lb.-ft. of torque @ 3,250 RPM
- All-aluminum construction
- 10.0:1 compression ratio
- Dual overhead camshafts with variable camshaft timing
- High Pressure Direct Fuel Injection
- Premium Unleaded Fuel recommended
- Lightweight die-cast aluminum block with six-bolt press-fit main bearing caps with piston-cooling jets
- Fully counterweighted forged steel crankshaft
- High-strength forged powder metal connecting rods with floating pins
- Lightweight aluminum high-strength pistons with low-friction skirt coating
- Tuned composite upper and lower intake manifold
- 6 quart die-cast aluminum deep sump oil pan
- Engine weight is 417 lbs. (without accessory drive)
Part Type
Engine: Complete Engines
Warranty Availability
Package Dimensions
36.5" x 69" x 36"
Package Weight
559 lb(s)
UPC Code
756122023334
Country of Origin
United States
