GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK
M-6006-M50DH
Retail
$7,500.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.

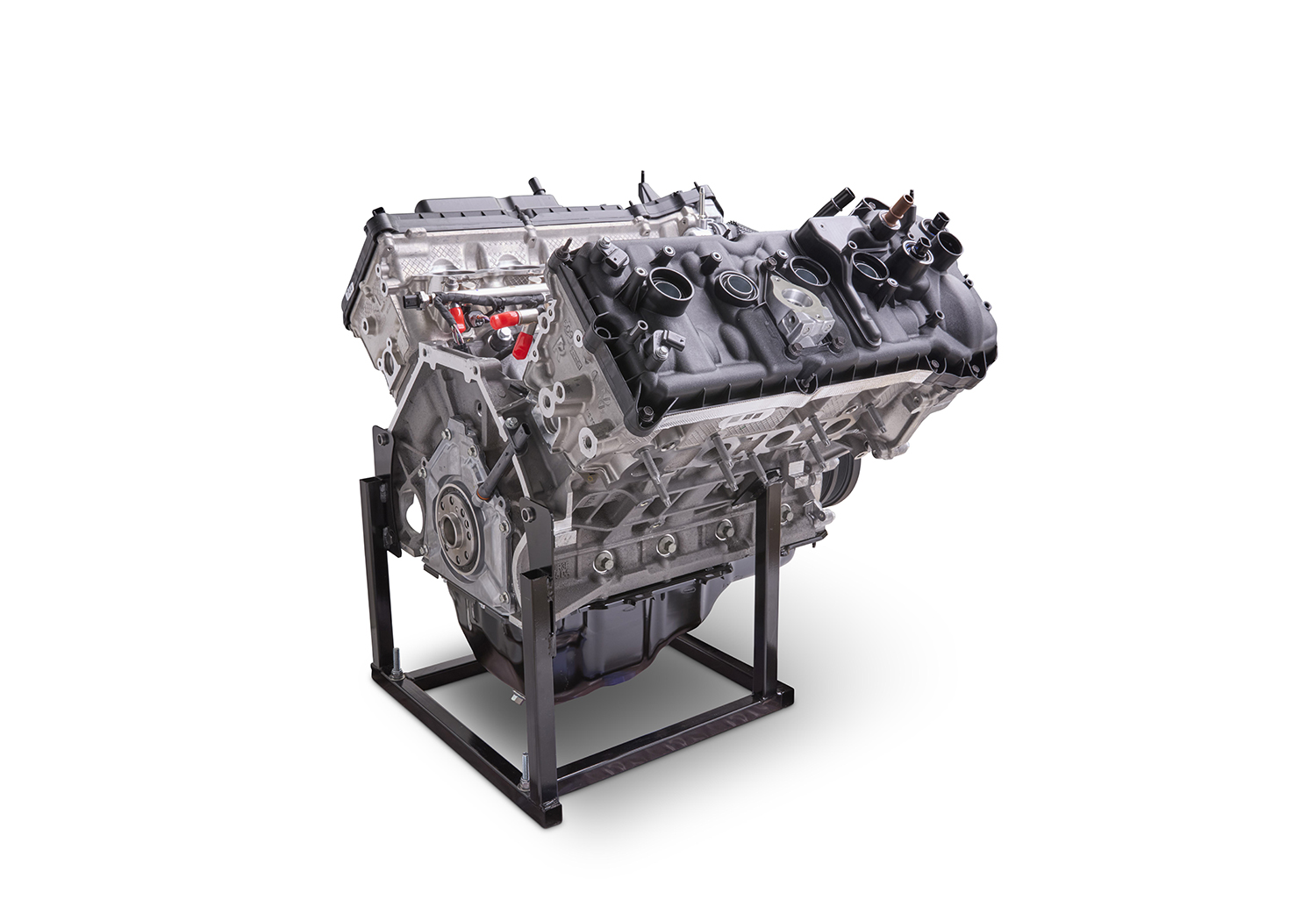

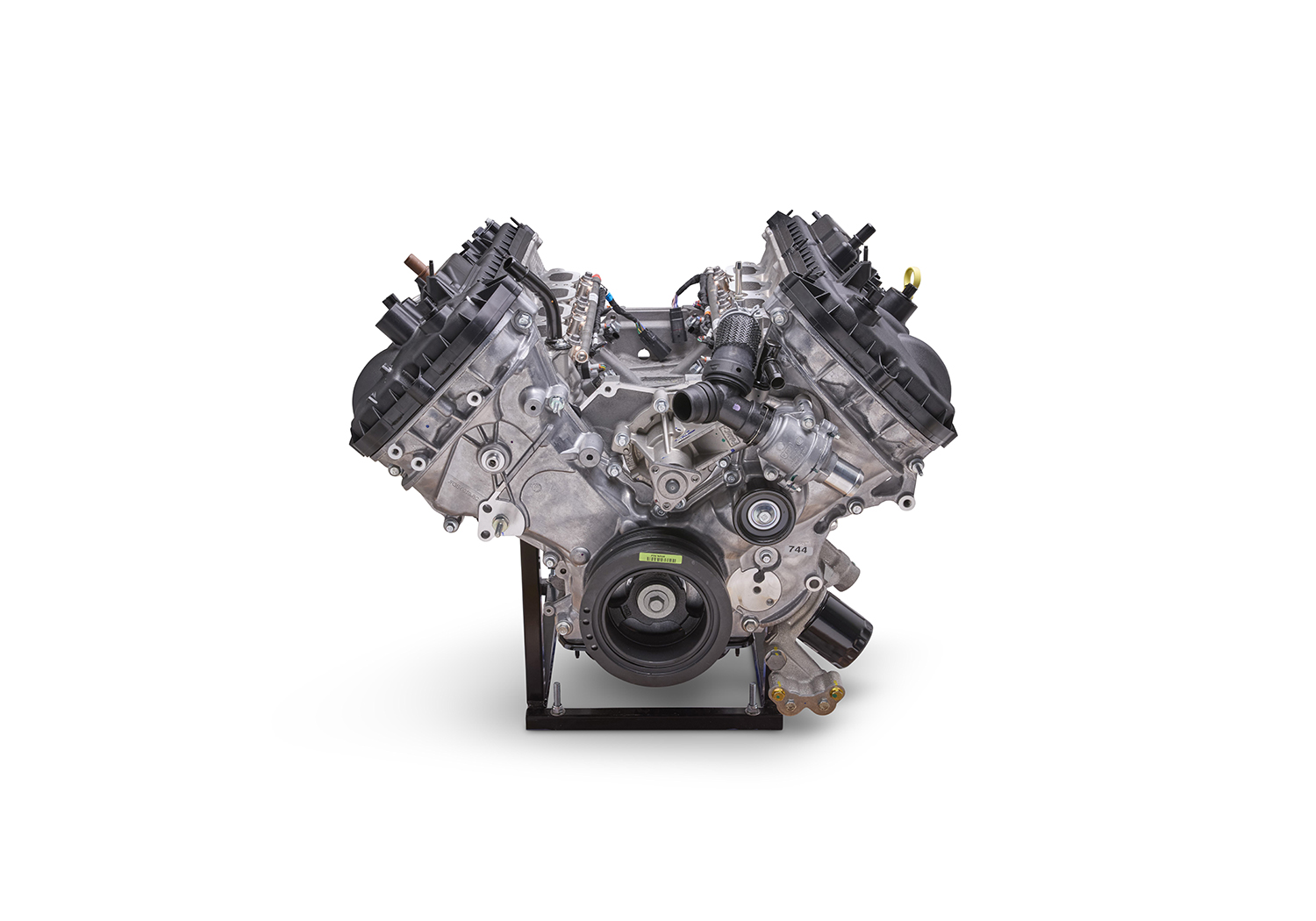

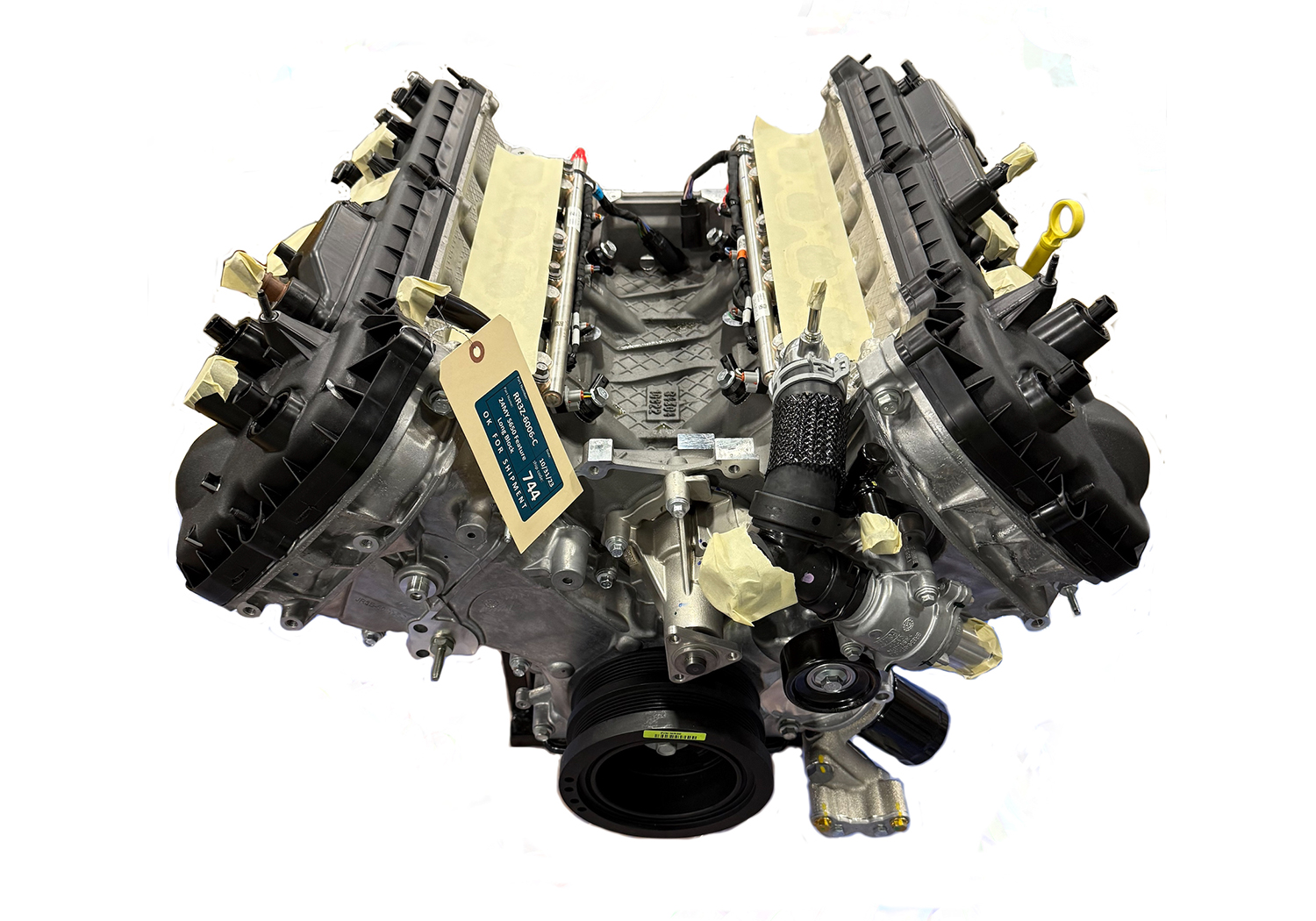

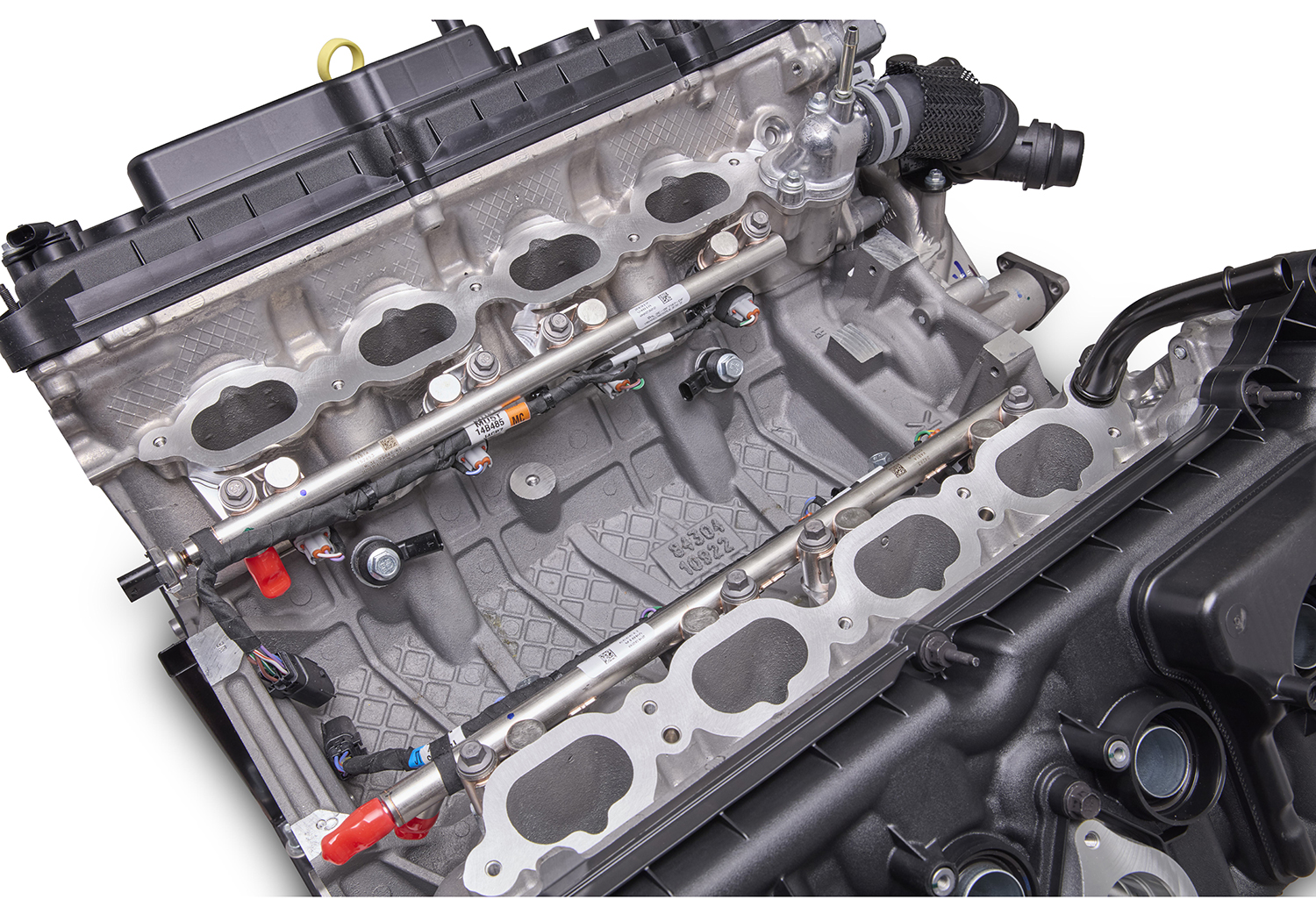

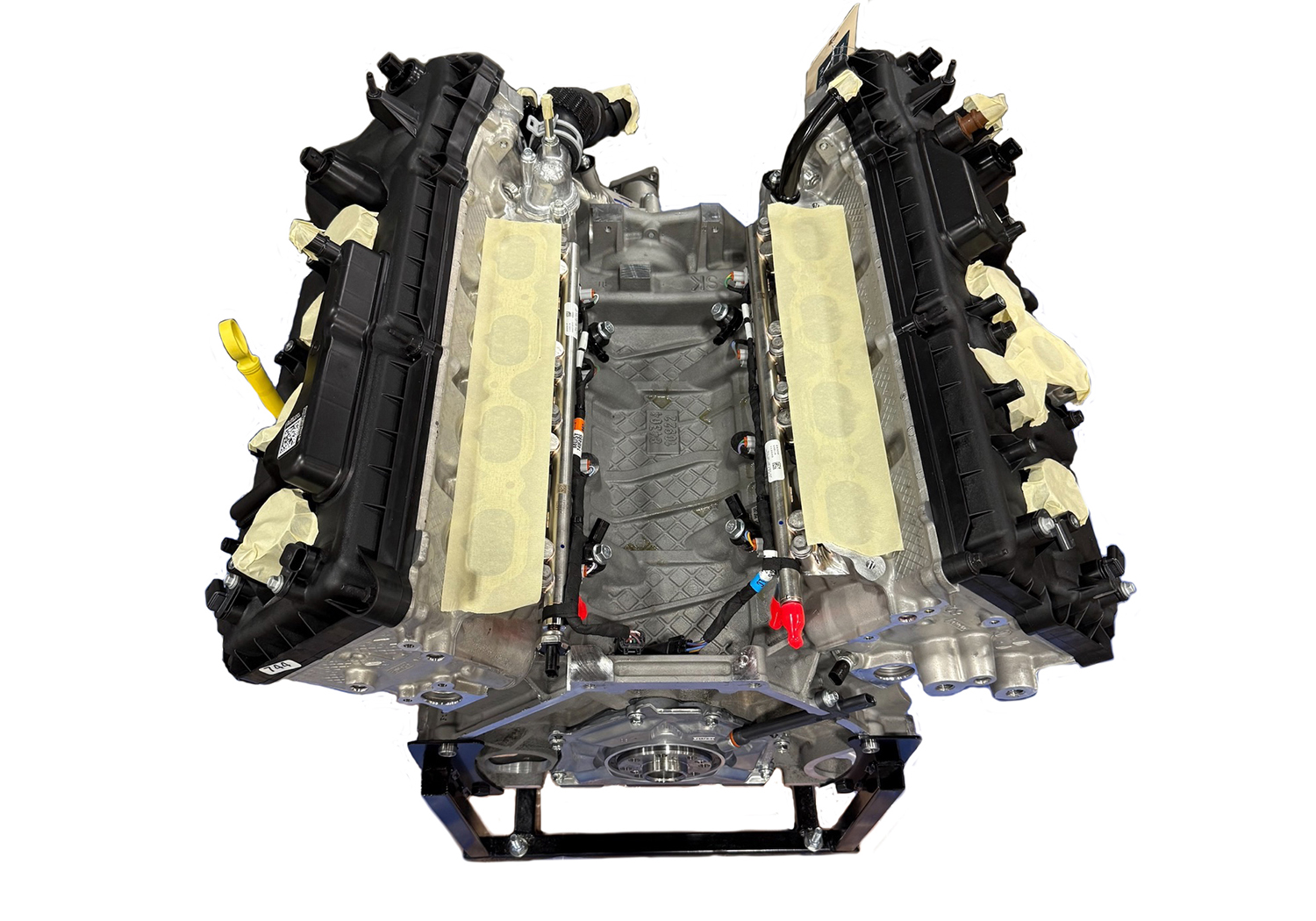

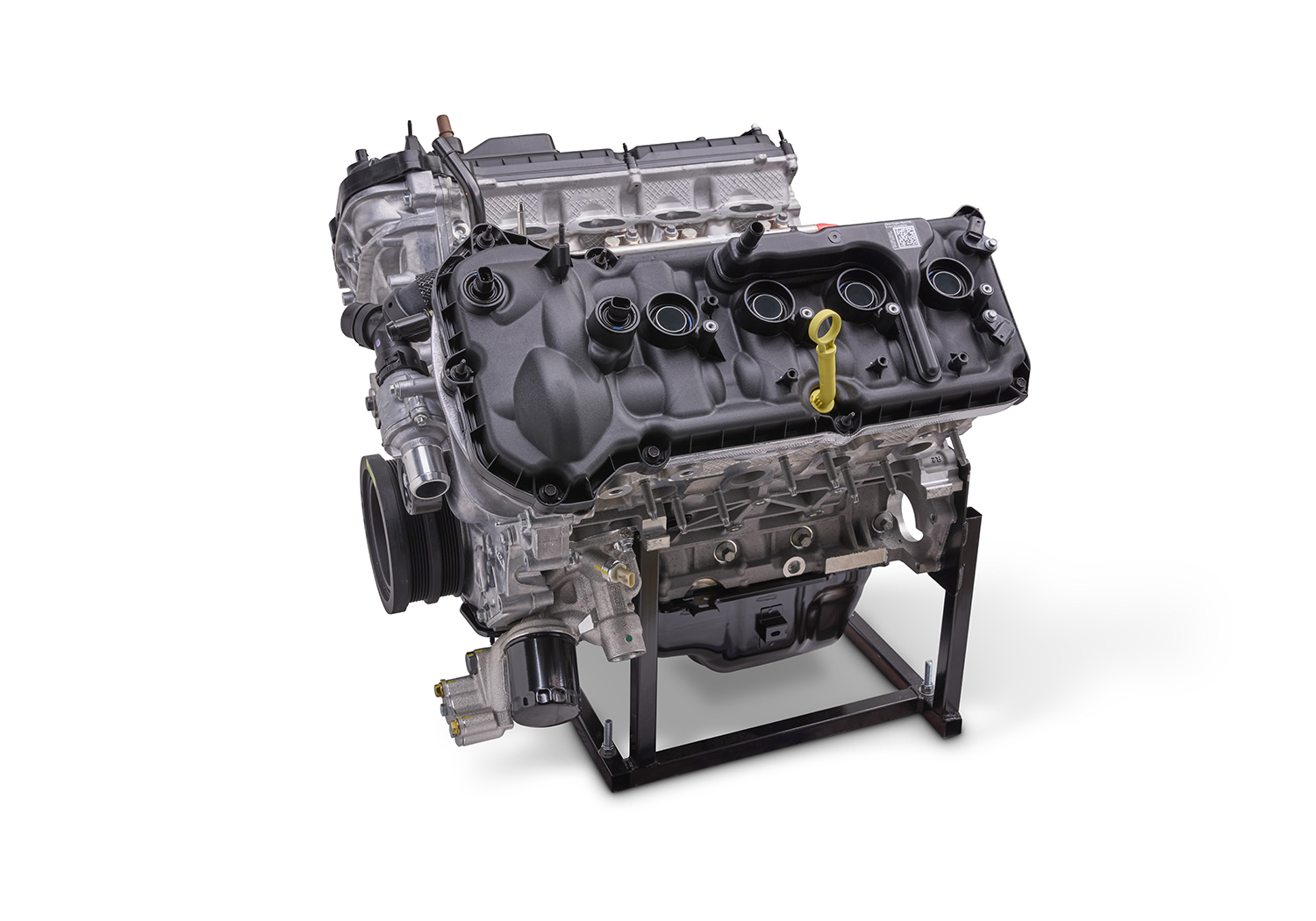

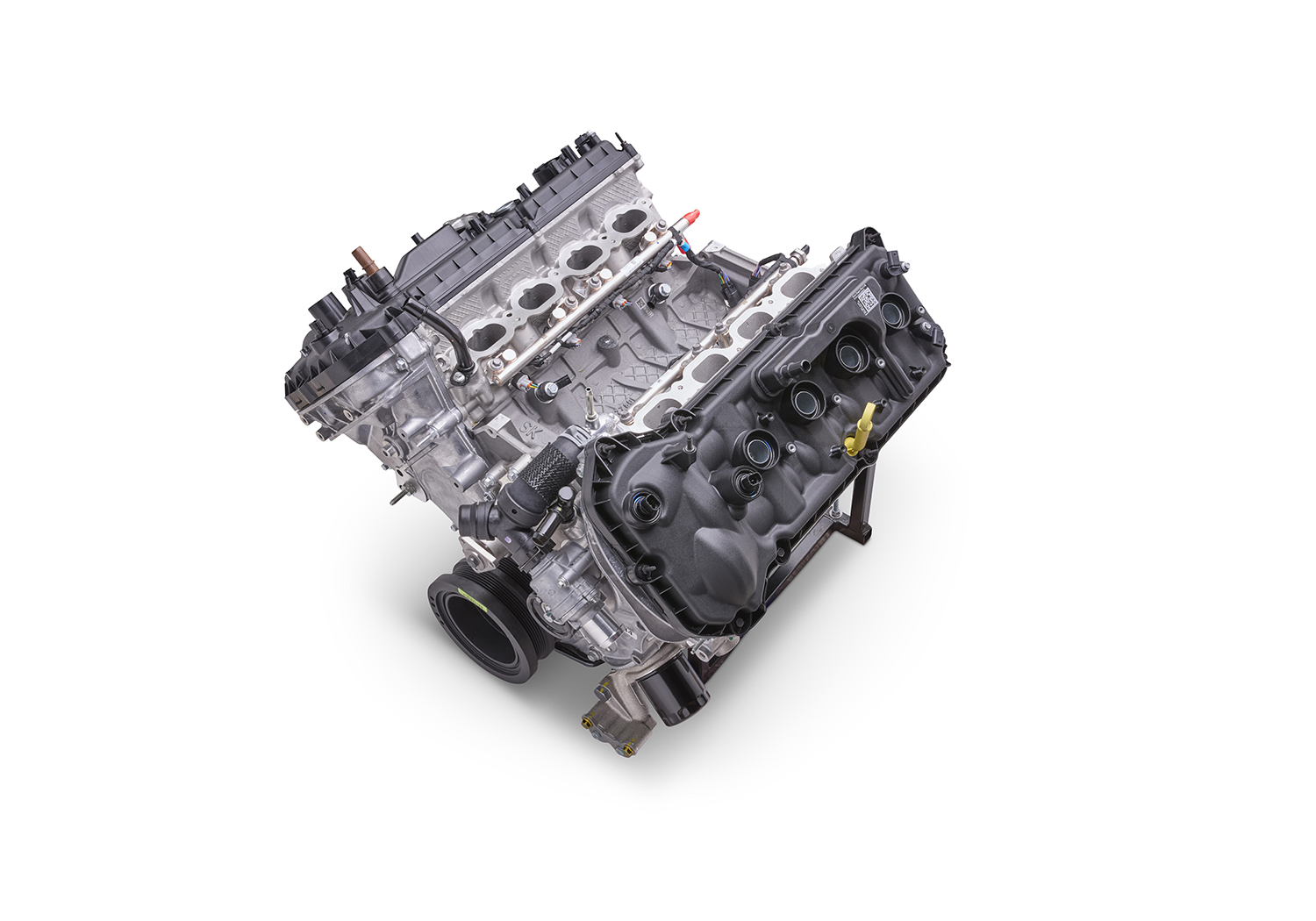

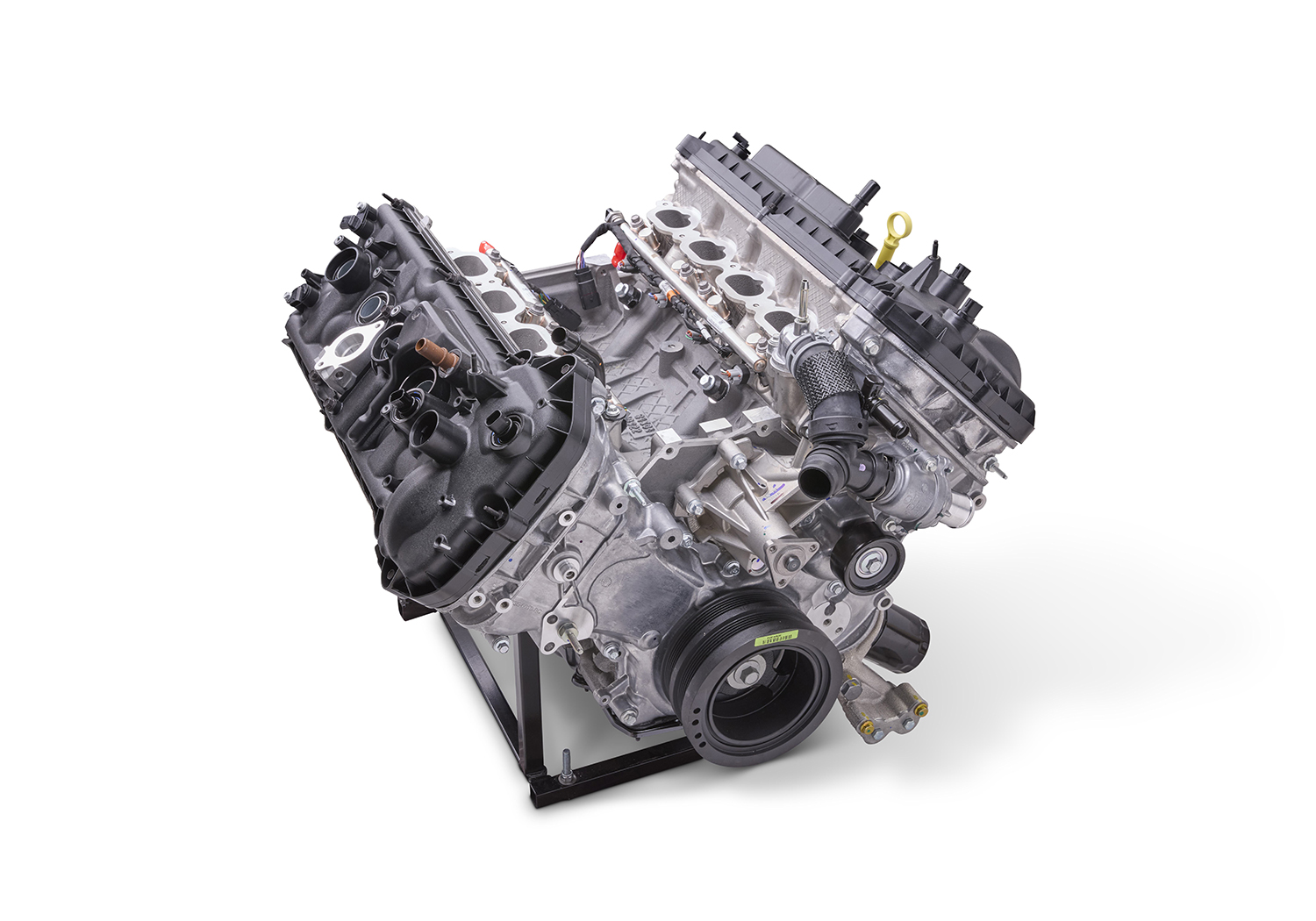

This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.
The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps, thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
- 12.0:1 Compression ratio
- Bore 93 mm x Stroke 92.7 mm
- Hypereutectic aluminum pistons
- Sintered steel connection rods
- Forged steel crankshaft
- Aluminum block that features plasma transferred wire arc spray weld liner coating
- Longer, 12 mm head bolts for higher clamp load
- 9.5 qt capacity steel oil pan
***NOTE: Driver side exhaust flange utilizes 5.2L bolt pattern***
The long block assembly does NOT include:
- Intake manifold/throttle bodies
- Fuel rails/fuel injectors
- Water pump pulley
- Alternator
- Exhaust manifolds
- Flywheel/flex plate
- Engine wiring/PCM
Part Type
Engine: Complete Engines
Warranty Availability
Package Dimensions
42" x 42" x 45"
Package Weight
487 lb(s)
UPC Code
756122022917
Country of Origin
Multiple Cntry Mfg. Locations
