11" PRESSURE PLATE BOLT AND DOWEL KIT

For use with Ford Performance and production flywheels on 4.6L and 5.0L Coyote engines to align and attach the 11" 6 or 9 bolt diaphragm-style pressure plate to the flywheel.

Increased clamp load over stock bolts on 1999-2010 applications. (see instructions for proper torque specs.)

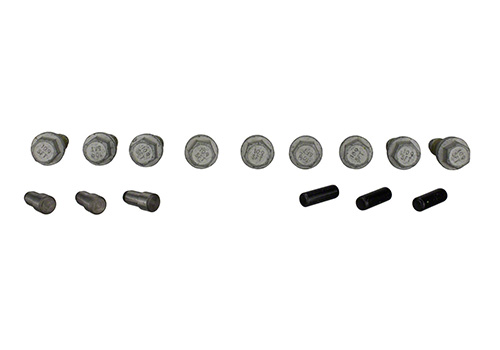

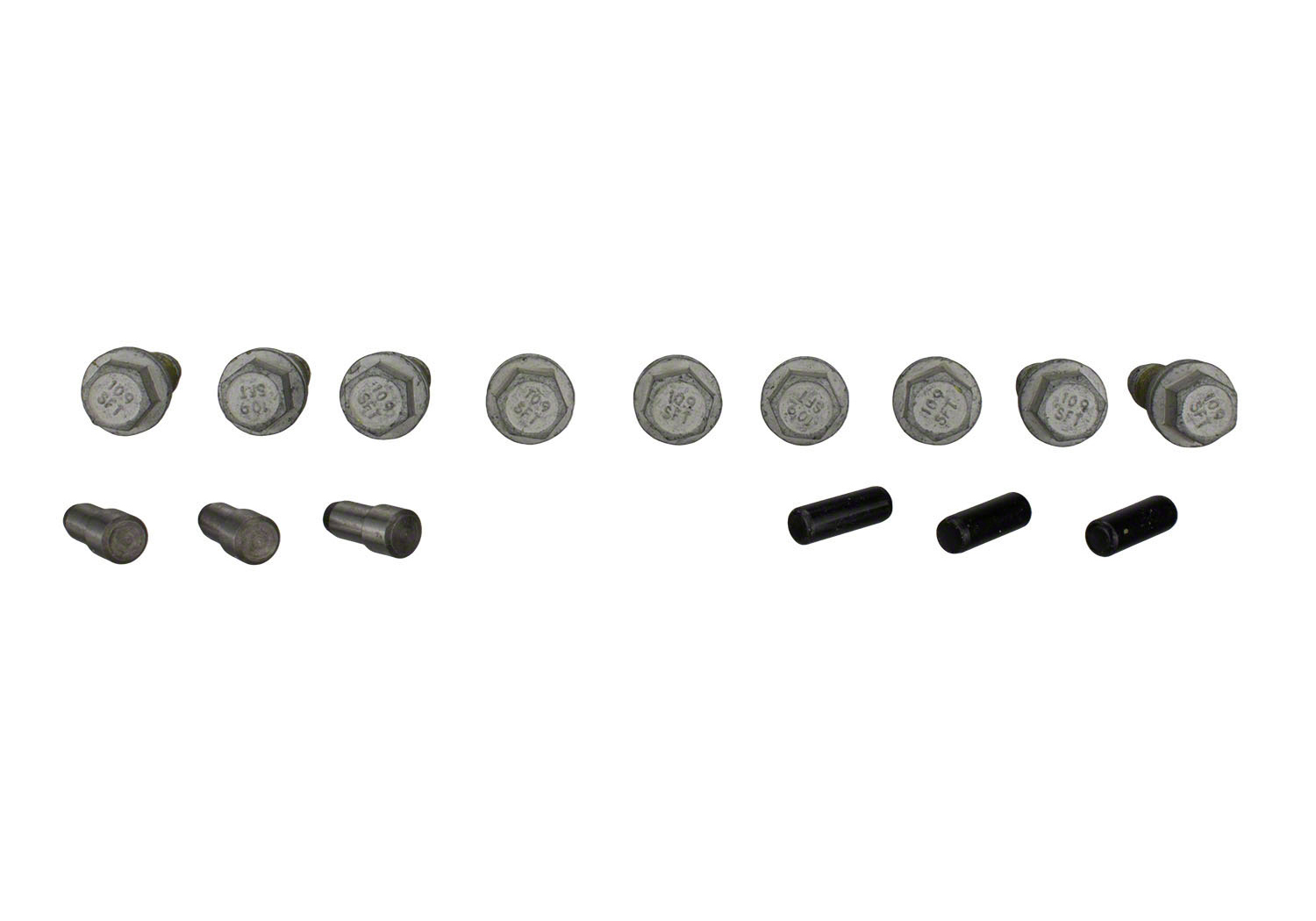

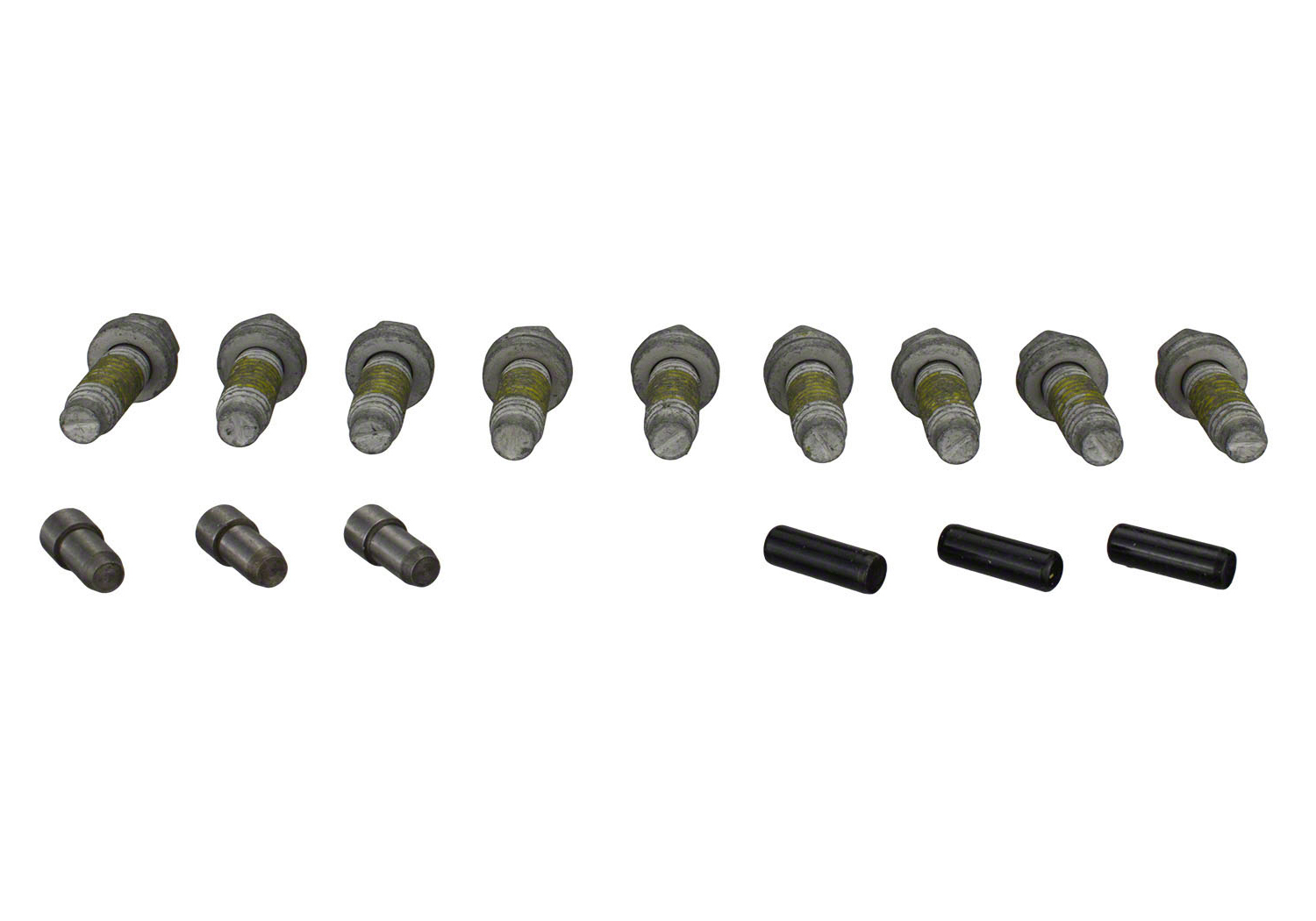

This kit includes:

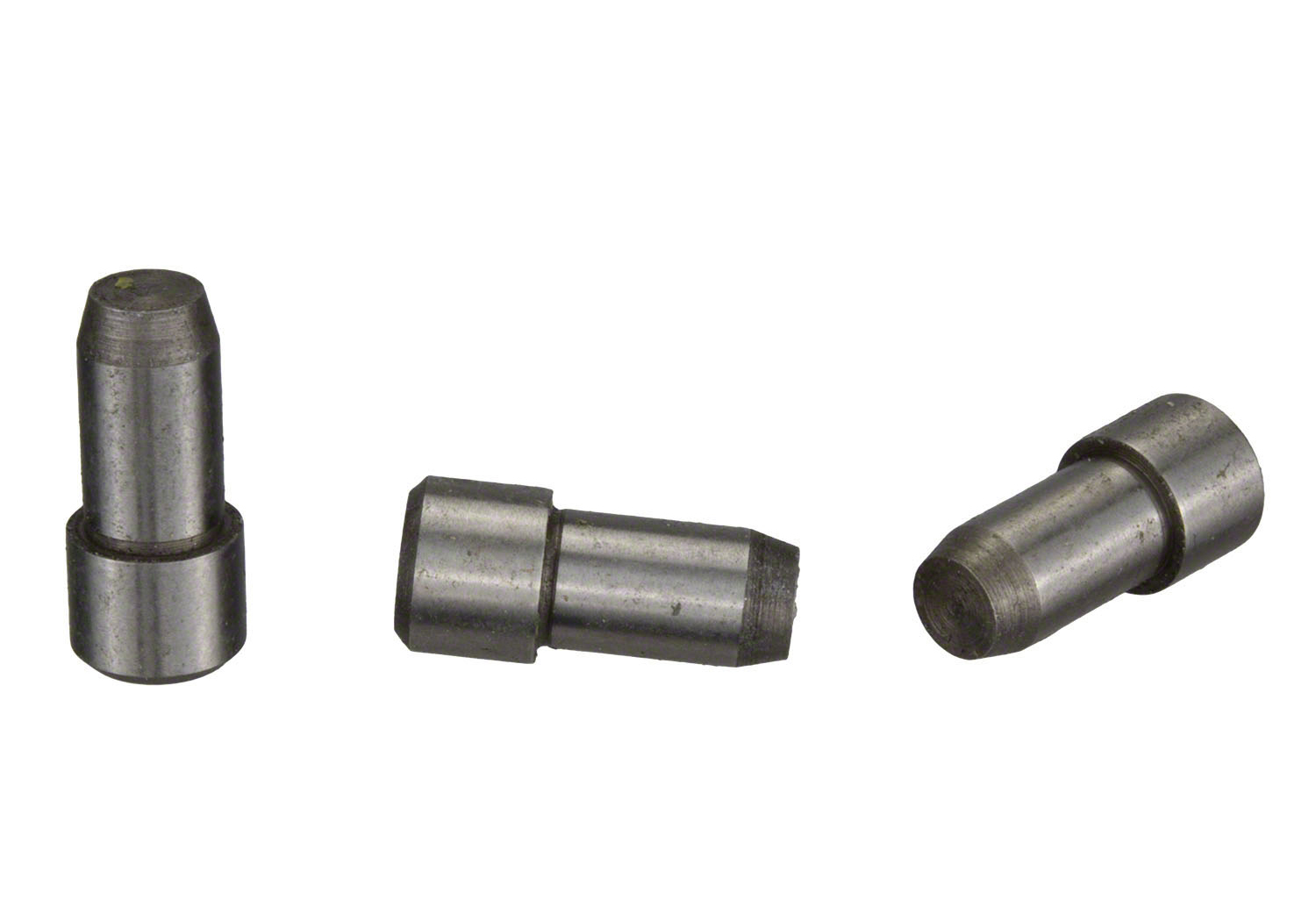

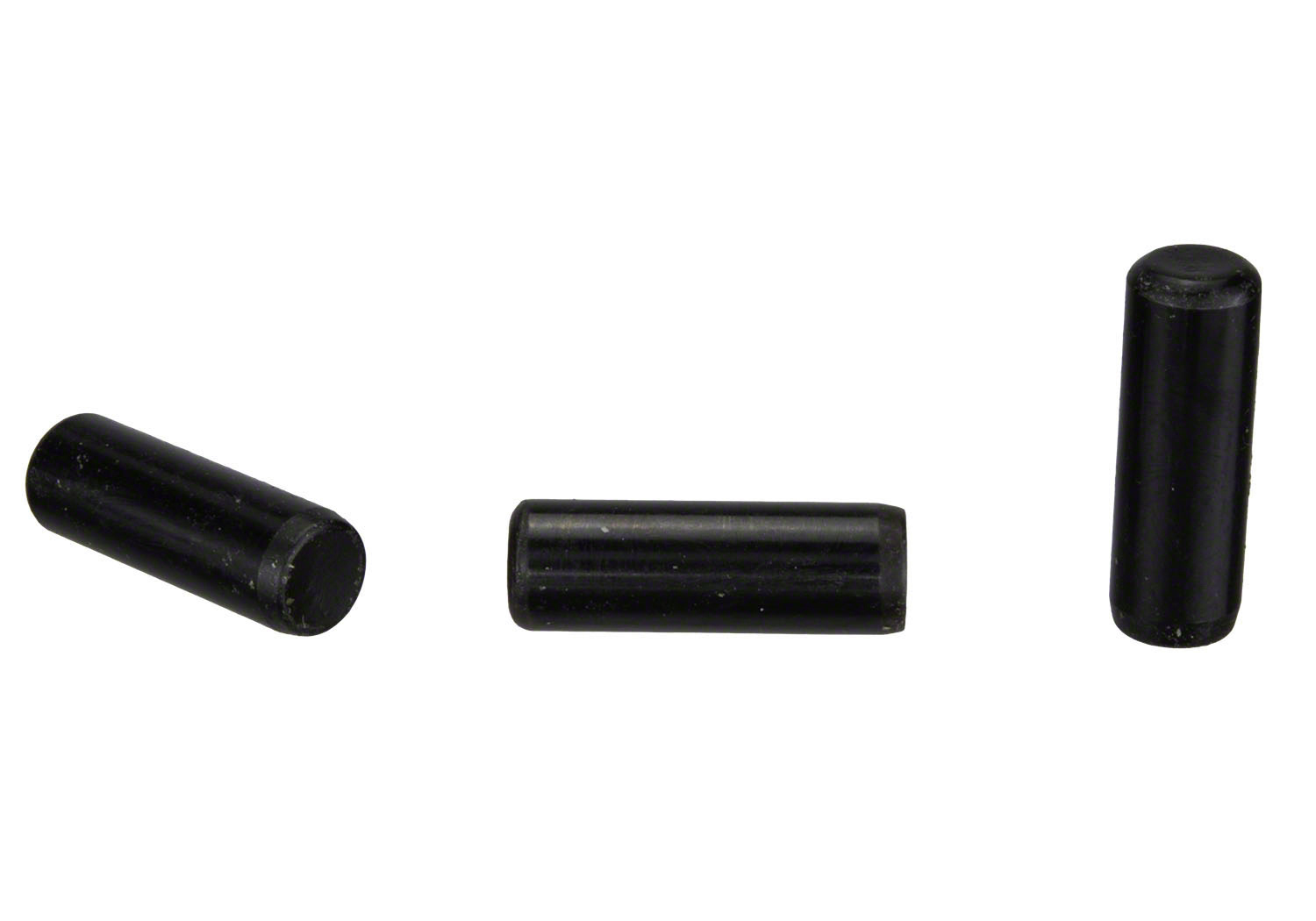

• Six dowel pins total, three stepped .249/.315" diameter, three 6.325mm diameter

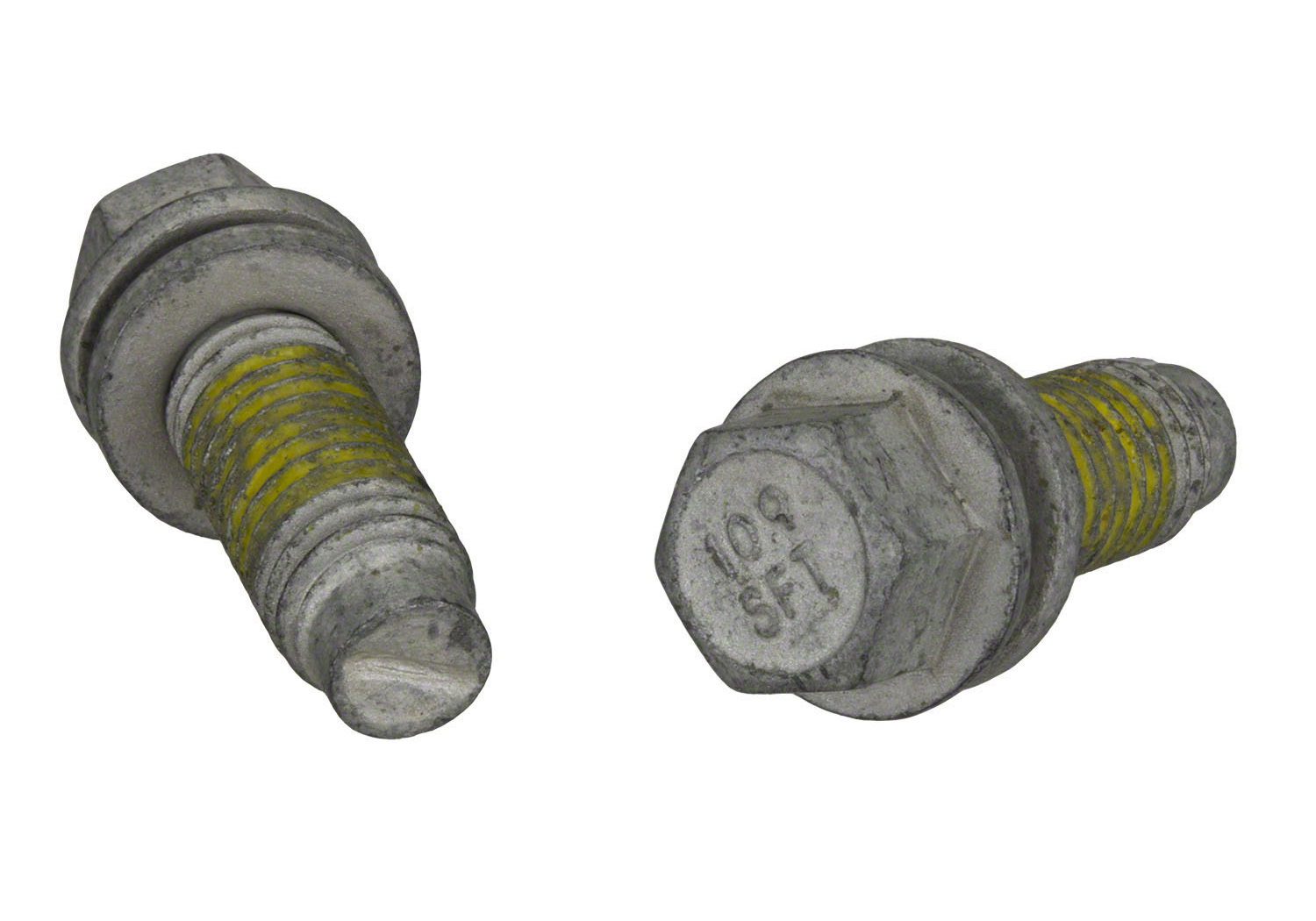

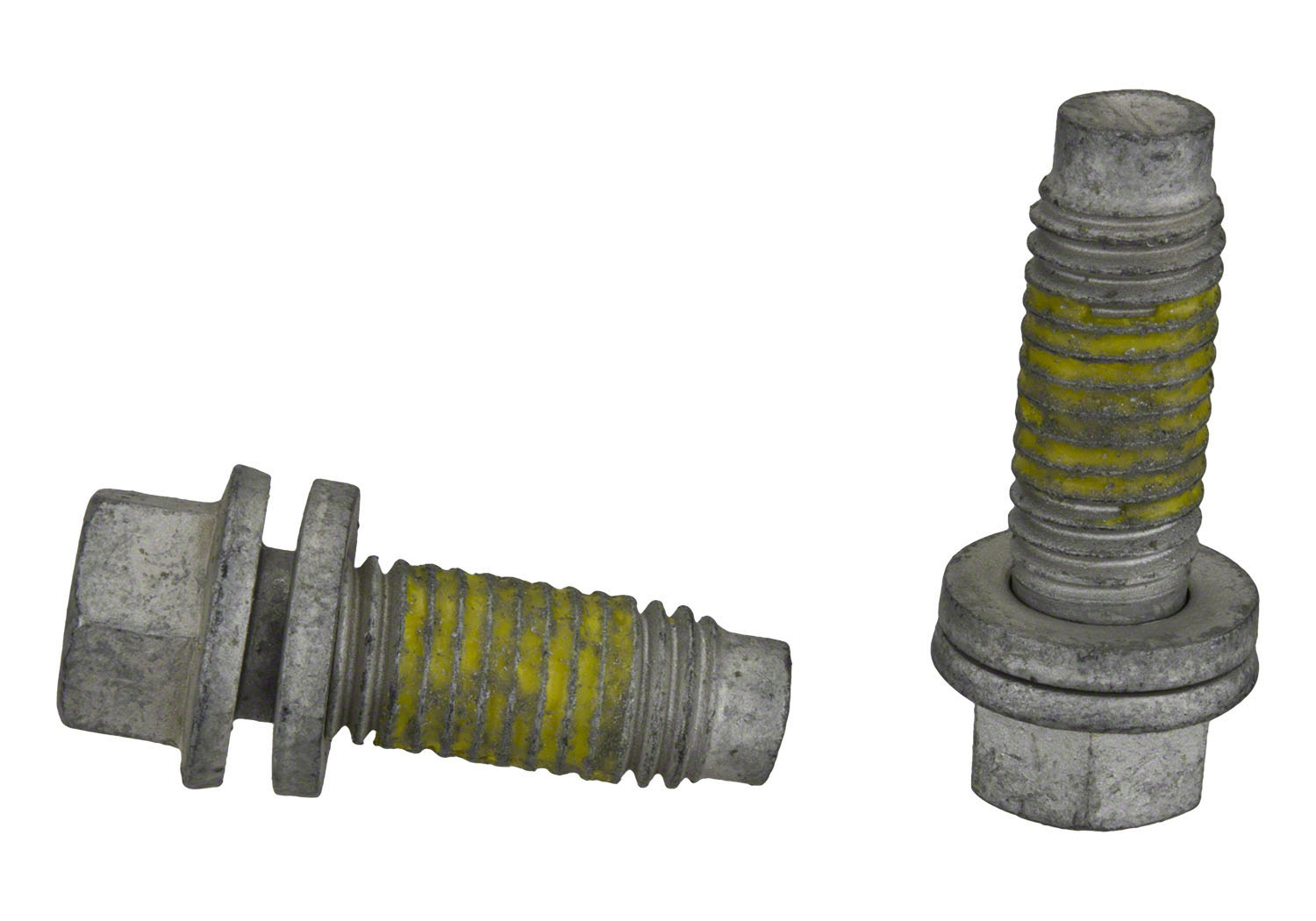

• Nine 10mm X 1.5 pressure plate bolts for use with 11" modular flywheel

Dowels are necessary to align and stiffen the pressure plate shell.  If the dowels are not used the clutch may chatter and the engine vibrate

NOTE: Does not include stepped dowels 6.635/7.04mm diameter or 7.944mm diameter dowels.
