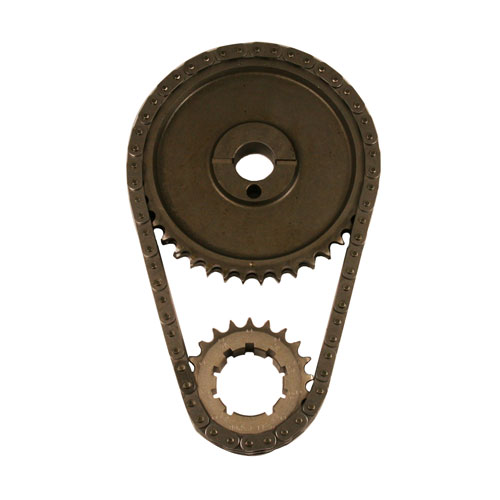

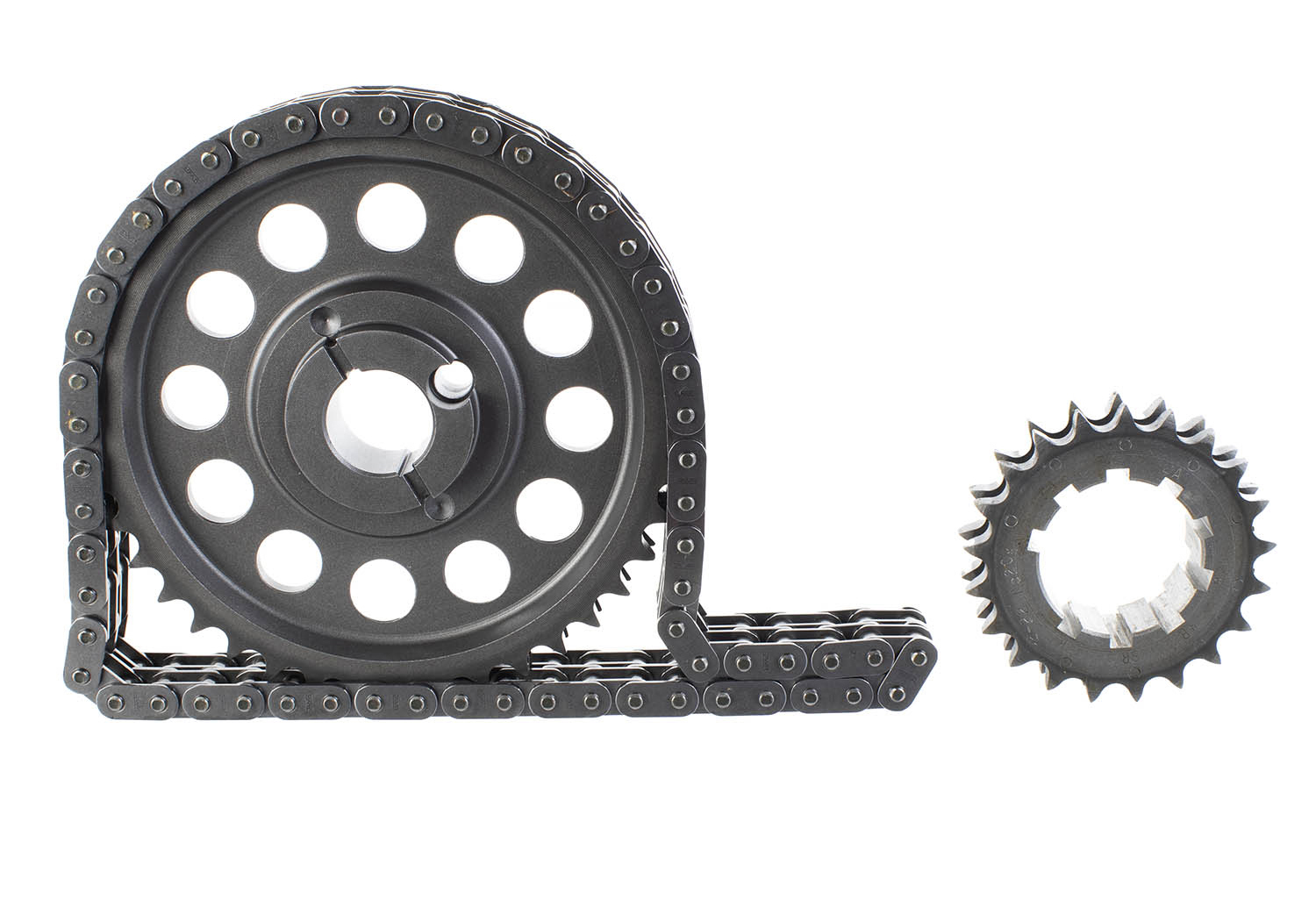

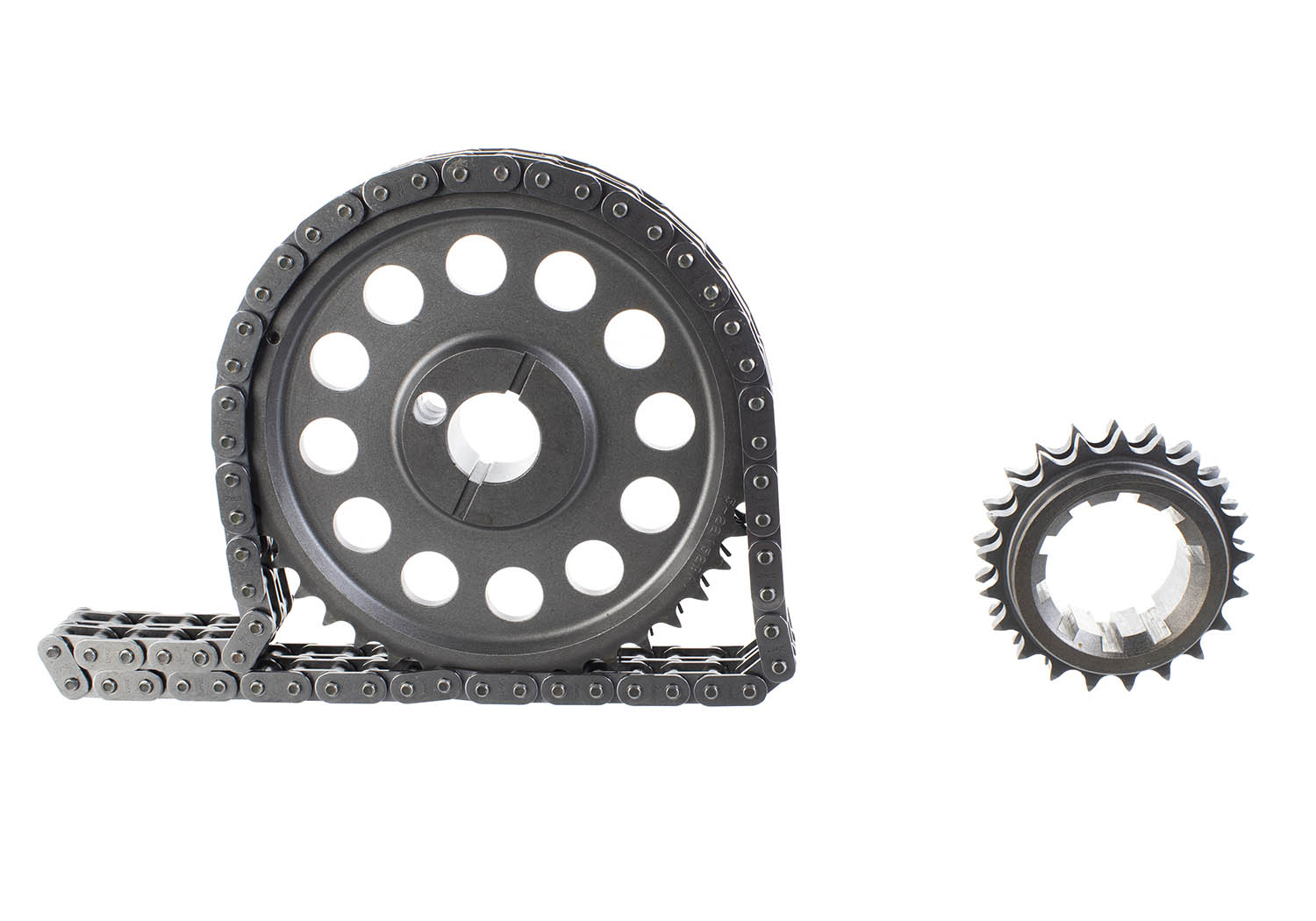

302-351W DOUBLE ROLLER TIMING CHAIN SET-STEEL GEAR
M-6268-B302
Retail
$210.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
- Fits:289/302/351W
- Recommended for competition engine builds
- Full roller chain with 9-position multi-index crank sprocket. The crank sprocket has 2 degree increments for timing adjustment of up to 8 degrees retarded, 8 degrees advanced, or straight-up (no advance or retard).
- Requires steel thrust plate M-6269-A351

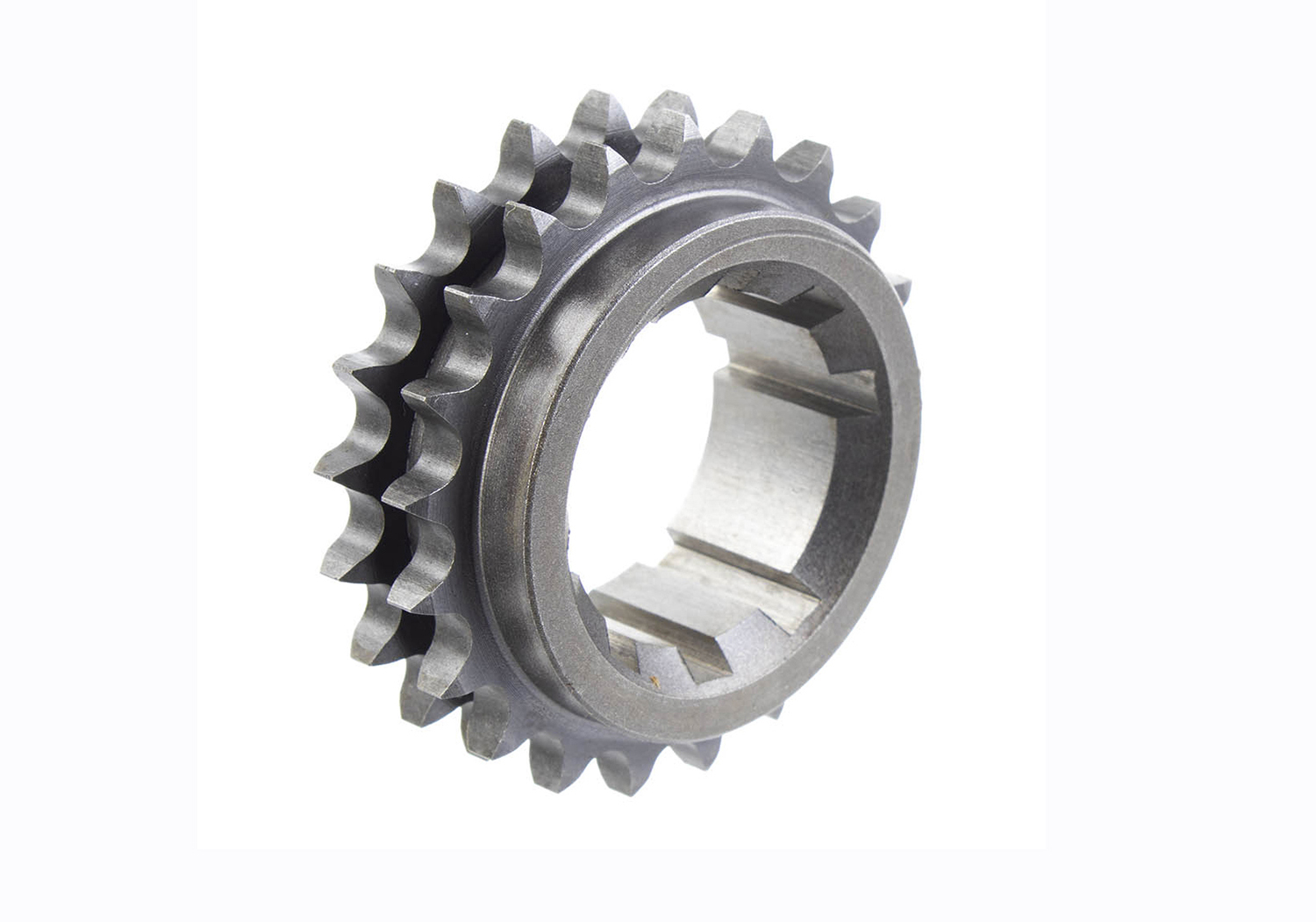

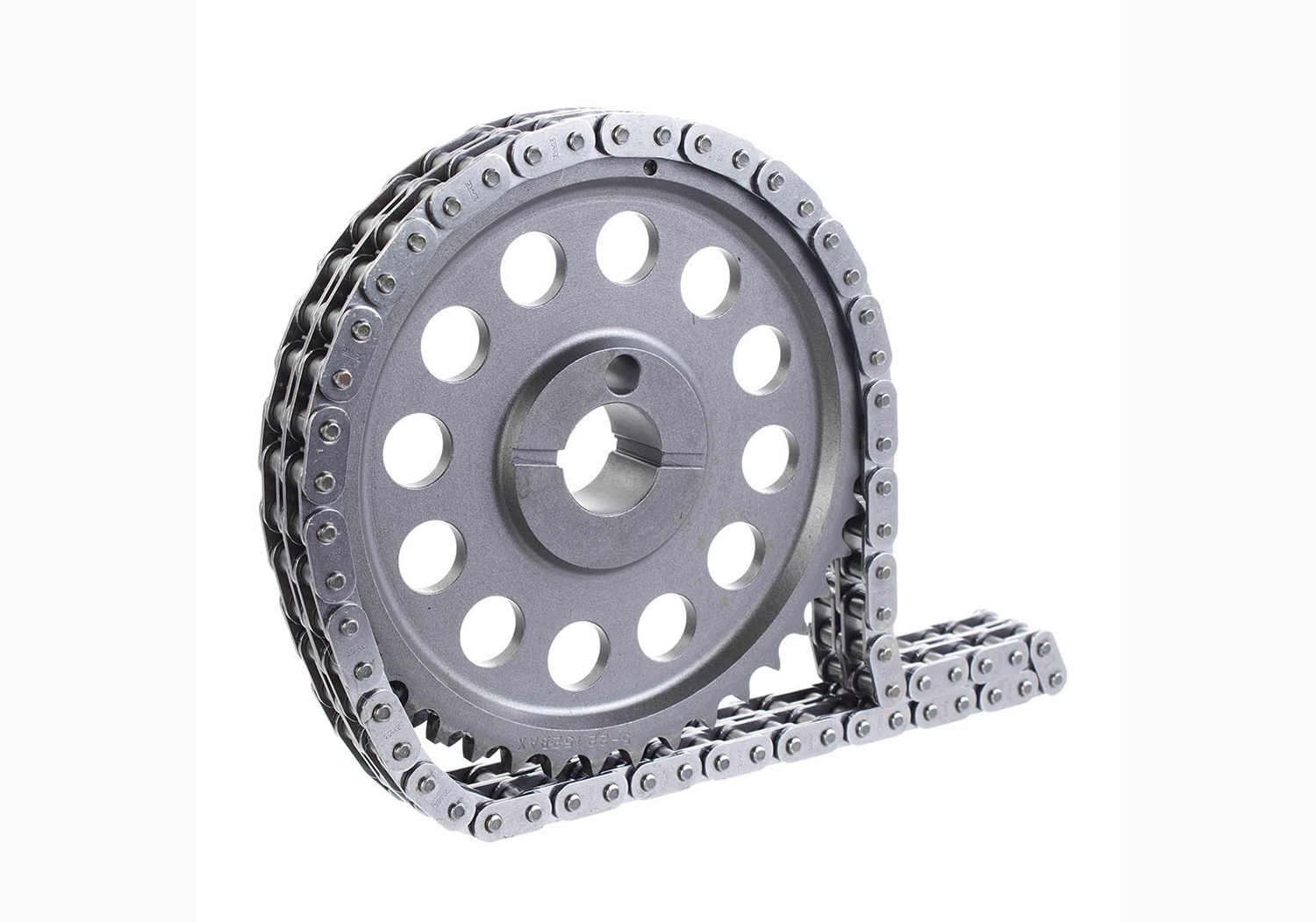

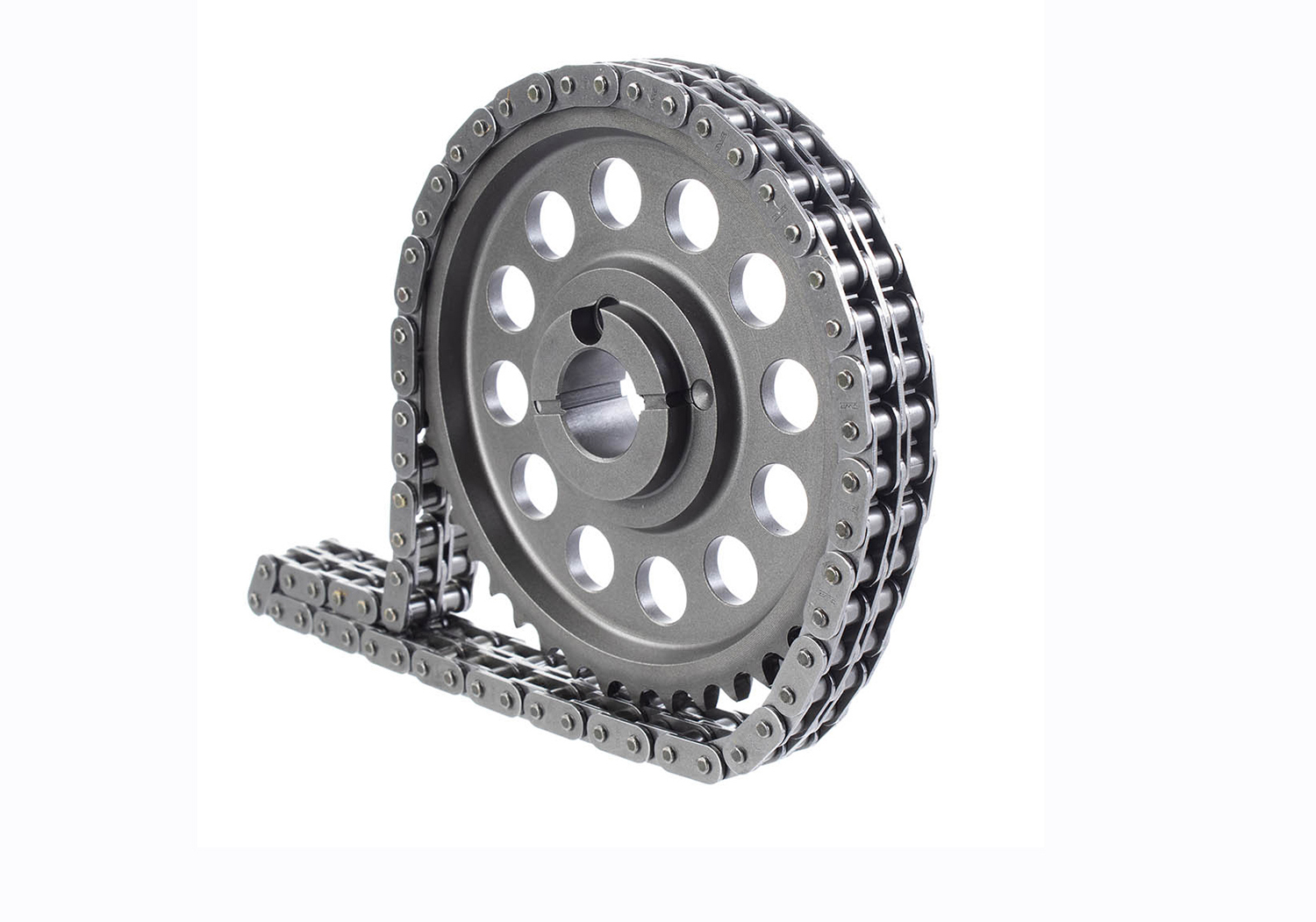

- Cam sprocket is made from steel. Crank sprocket is made from induction-hardened, billet steel

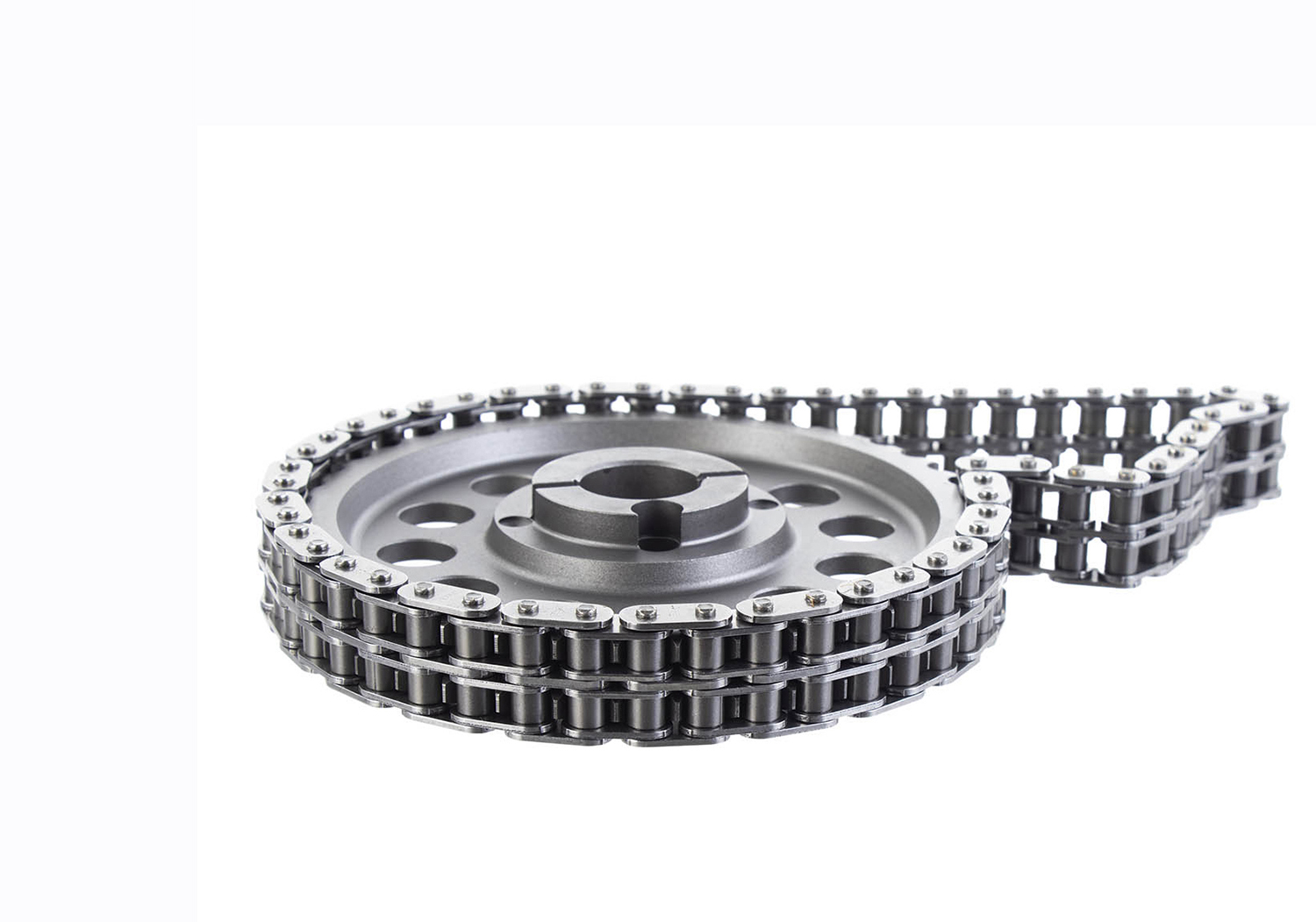

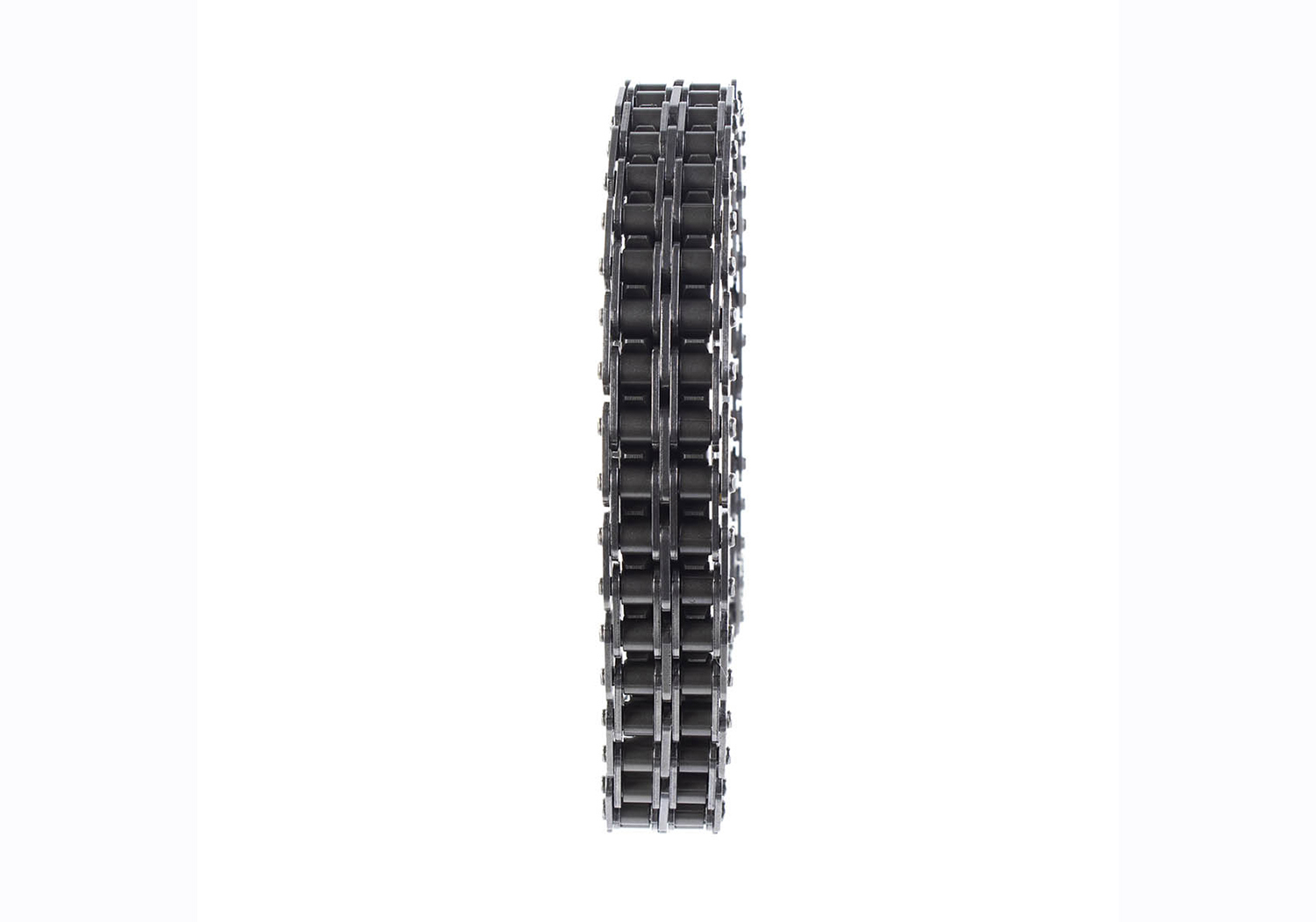

- Chain is rugged, double-row type with oversized 0.250 in. rollers that deliver long life and reliability
- Compatible with single-piece fuel pump eccentric M-6287-B302. Depending on camshaft manufacturer and application, other dowel pin length may be required. Not compatible with two-piece fuel pump eccentric
Part Type
Engine: Timing Drive Related
Warranty Availability
Package Dimensions
7.75" x 2" x 7.75"
Package Weight
3.24 lb(s)
UPC Code
756122626092
Country of Origin
United States
