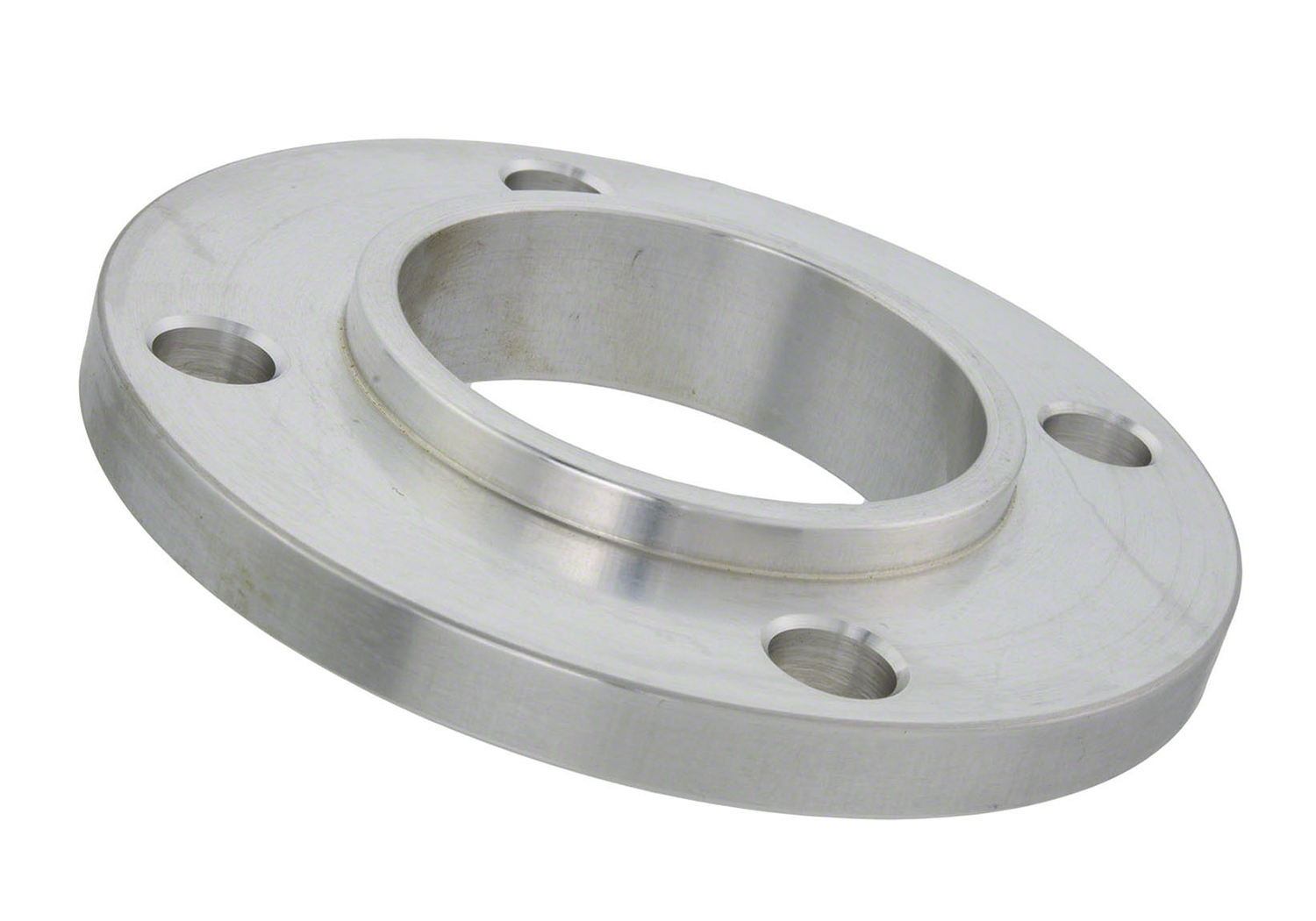

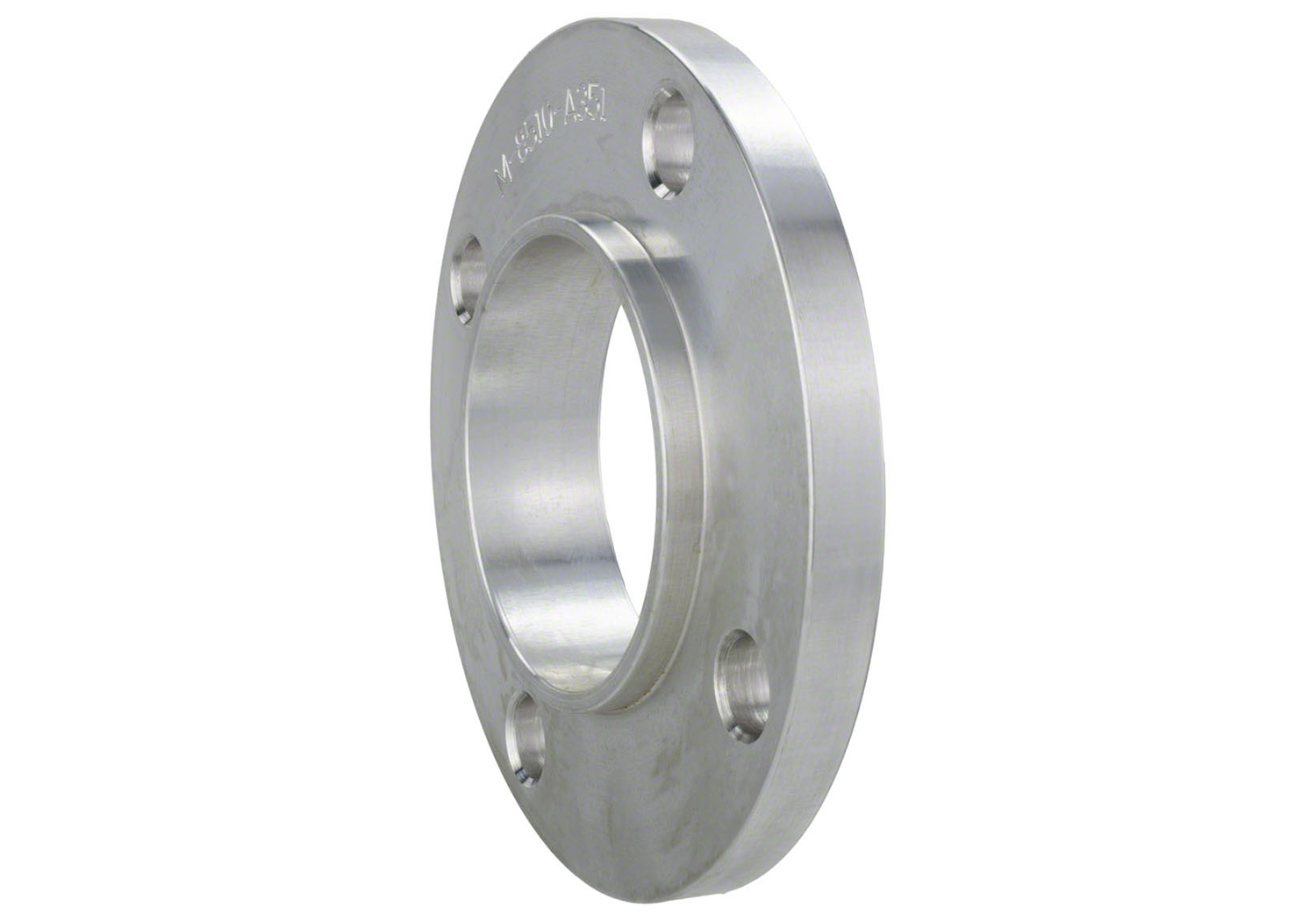

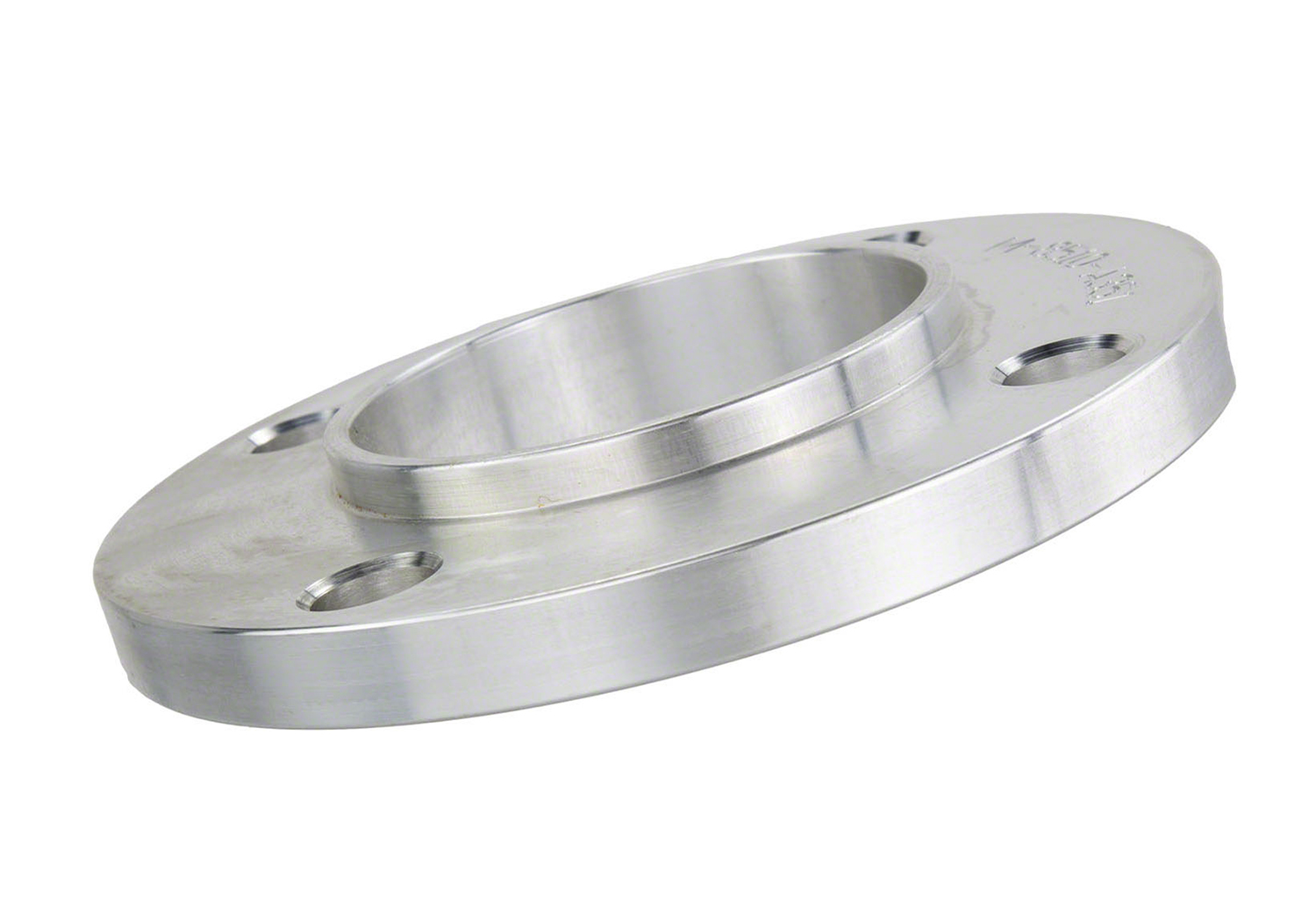

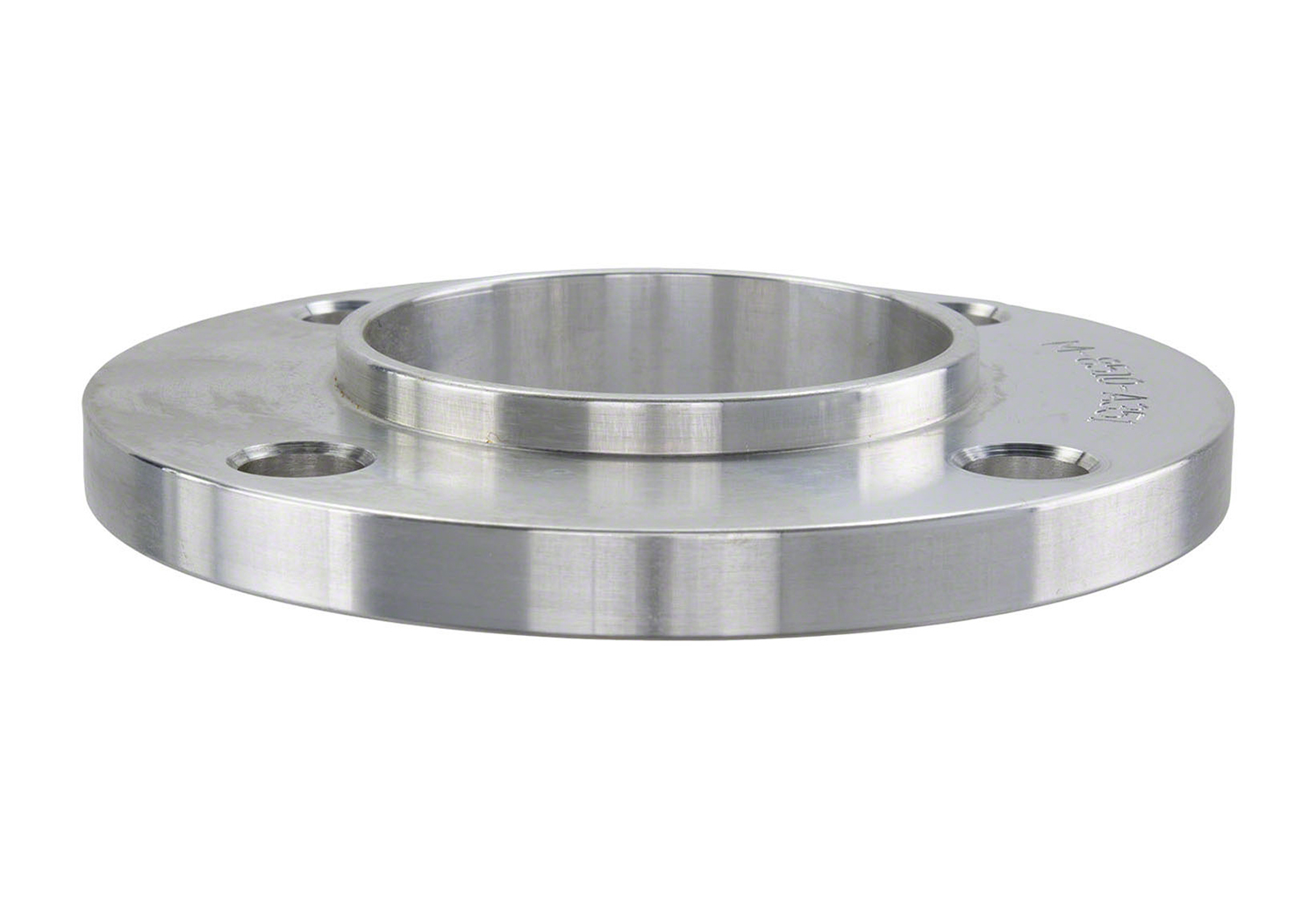

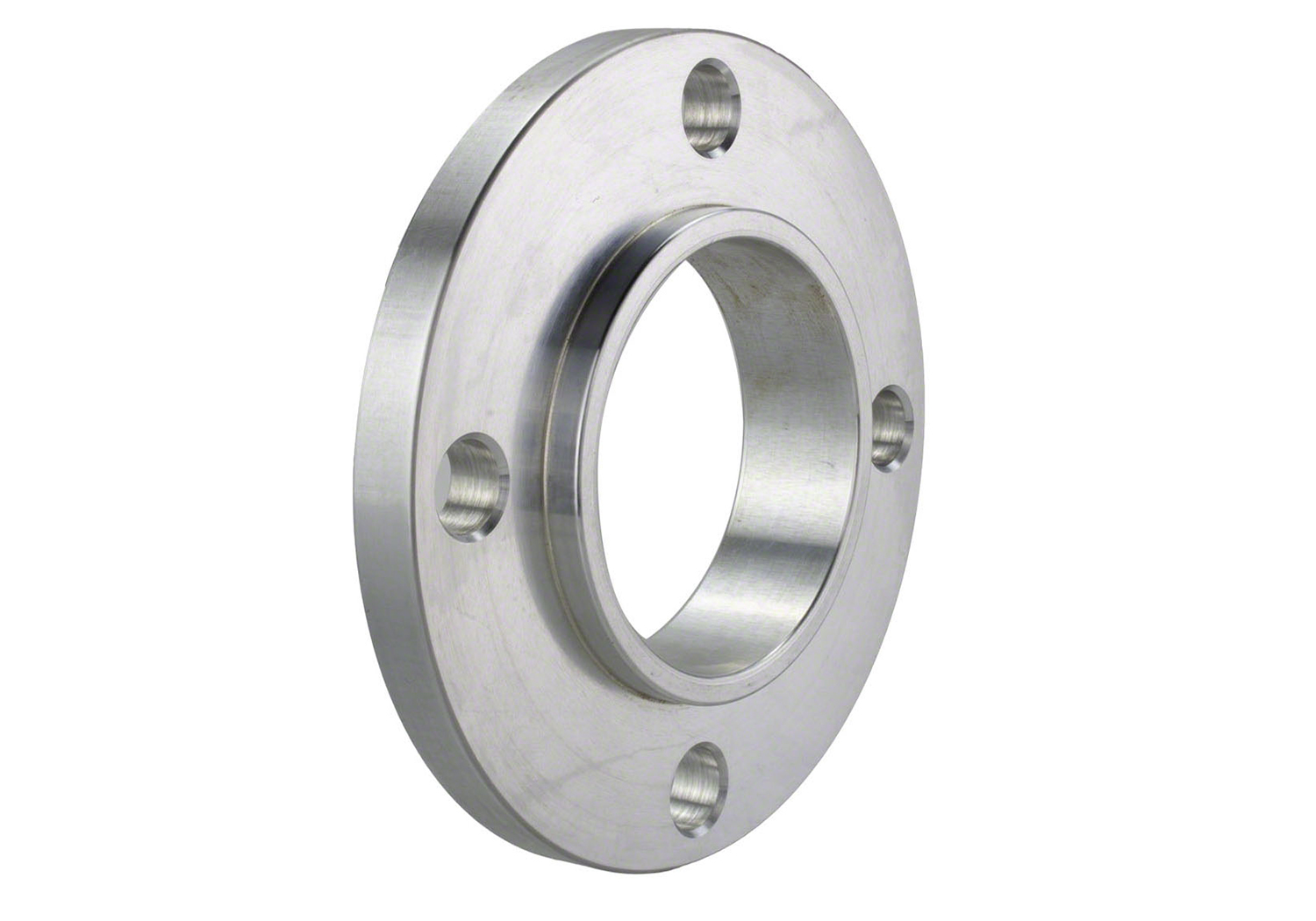

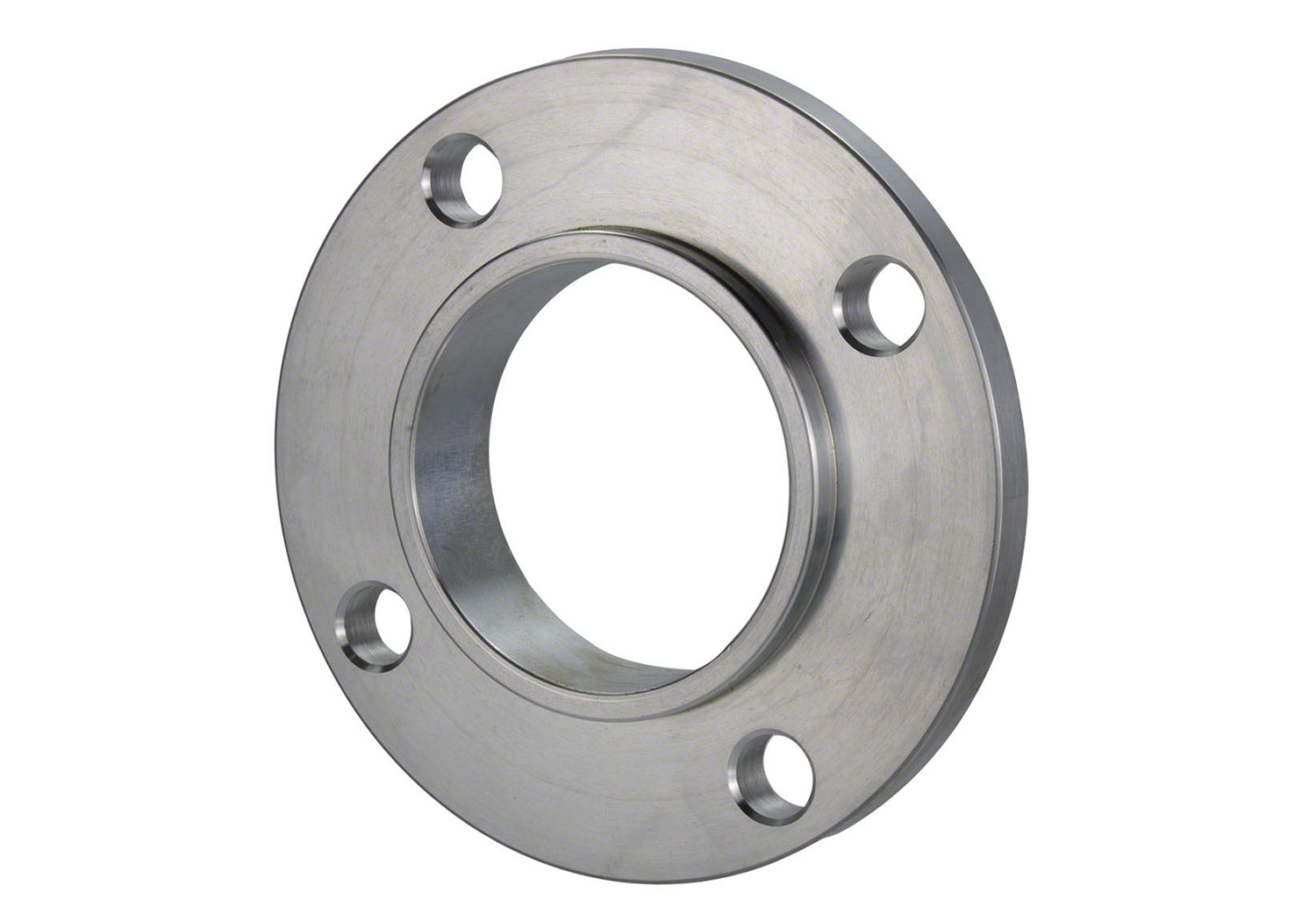

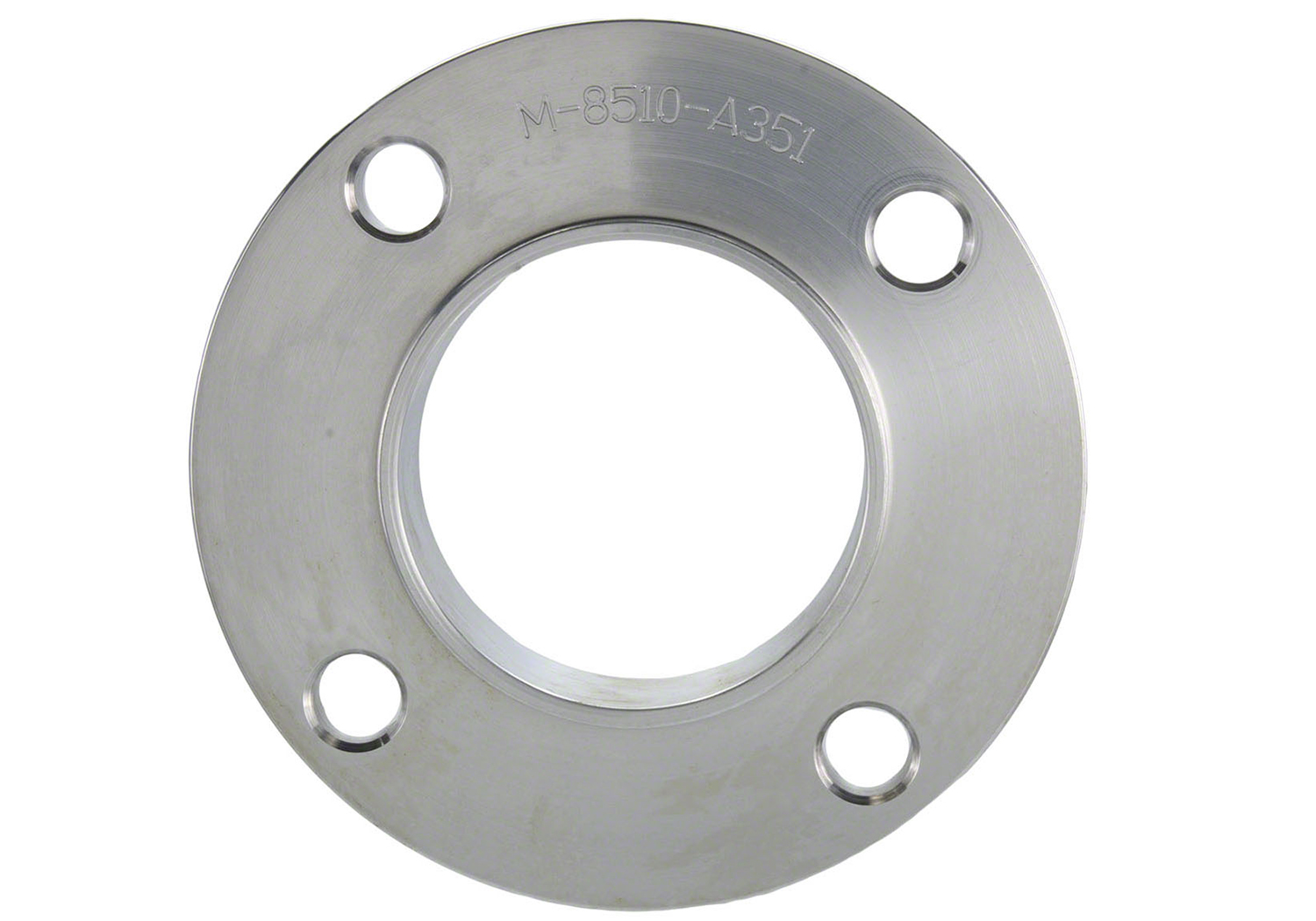

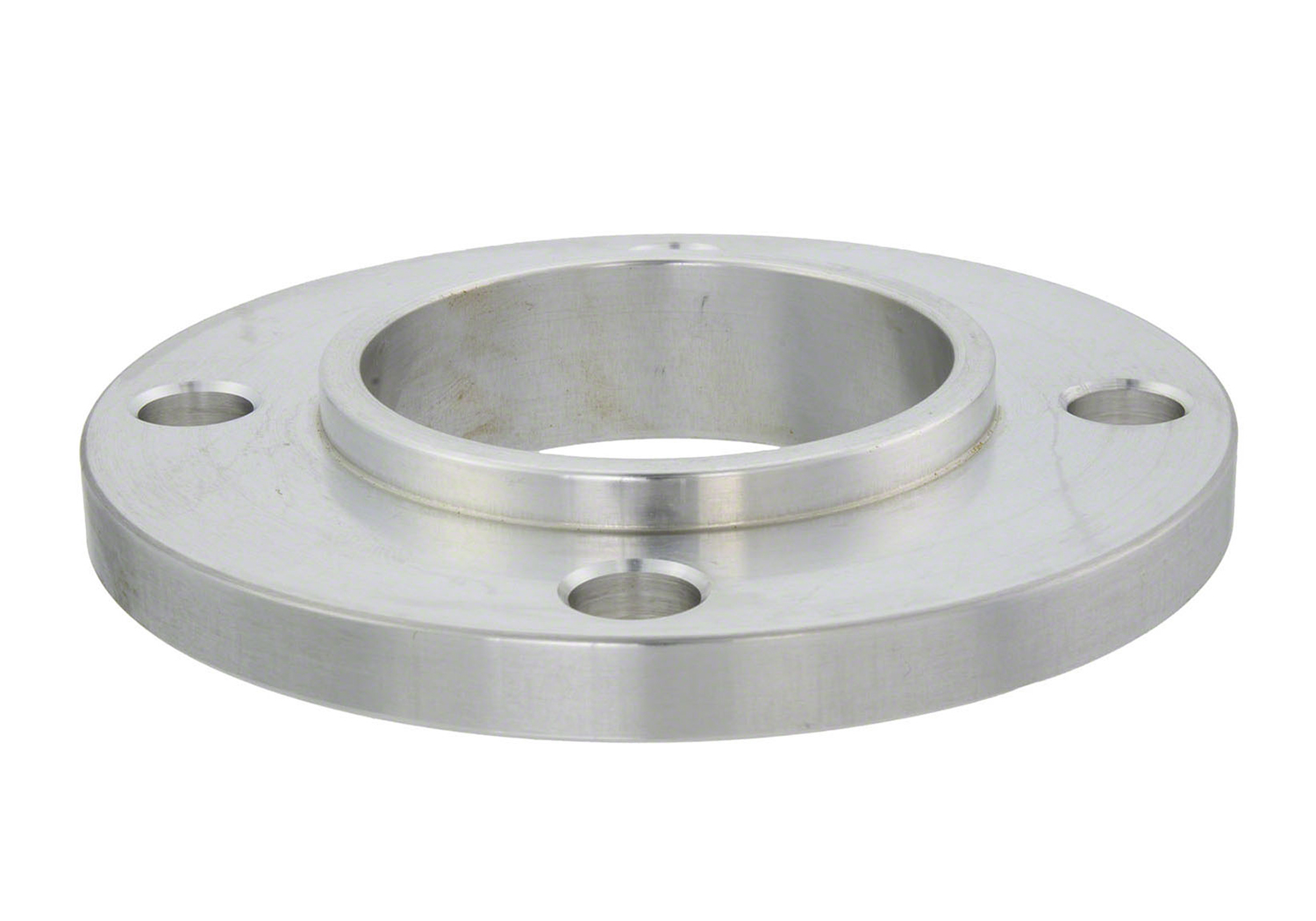

302/351W CRANKSHAFT PULLEY SPACER - 0.350"

302/351W CRANKSHAFT PULLEY SPACER -  0.350"
M-8510-A351
Retail
$60.00
Sold in Units of
Each (1)
Instruction Sheet
    Use the following chart to select the proper crankshaft pulley spacer to use with Ford Performance M-6316-C351/A50/D302 crank dampers to achieve proper belt alignment on late model 302 and 351 Windsor engines:
    PART NUMBER    ENGINE  CRANK PULLEY BOLT PATTERN  SPACER THICKNESS
 M-8510-A351         302/351W                            4                                      0.350"                                                                                   M-8510-B351         302/351W                            4                                      0.950"
 M-8510-C351         302/351W                            4                                      0.875"
 M-8510-D351         302/351W                            4                                      0.909"

    Note: Early 3-bolt crank pulleys generally bolt directly to the damper with flanged pulley pilot (damper is drilled for 3- and 4-bolt patterns). Pulley alignment should be checked and any misalignment corrected with the proper thickness spacer.
Part Type
Engine: Cooling
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
5.5" x 0.6" x 0.25"
Package Weight
0.4 lb(s)
UPC Code
756122851012
Country of Origin
United States
