M-1830-JACK
Retail
$875.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available

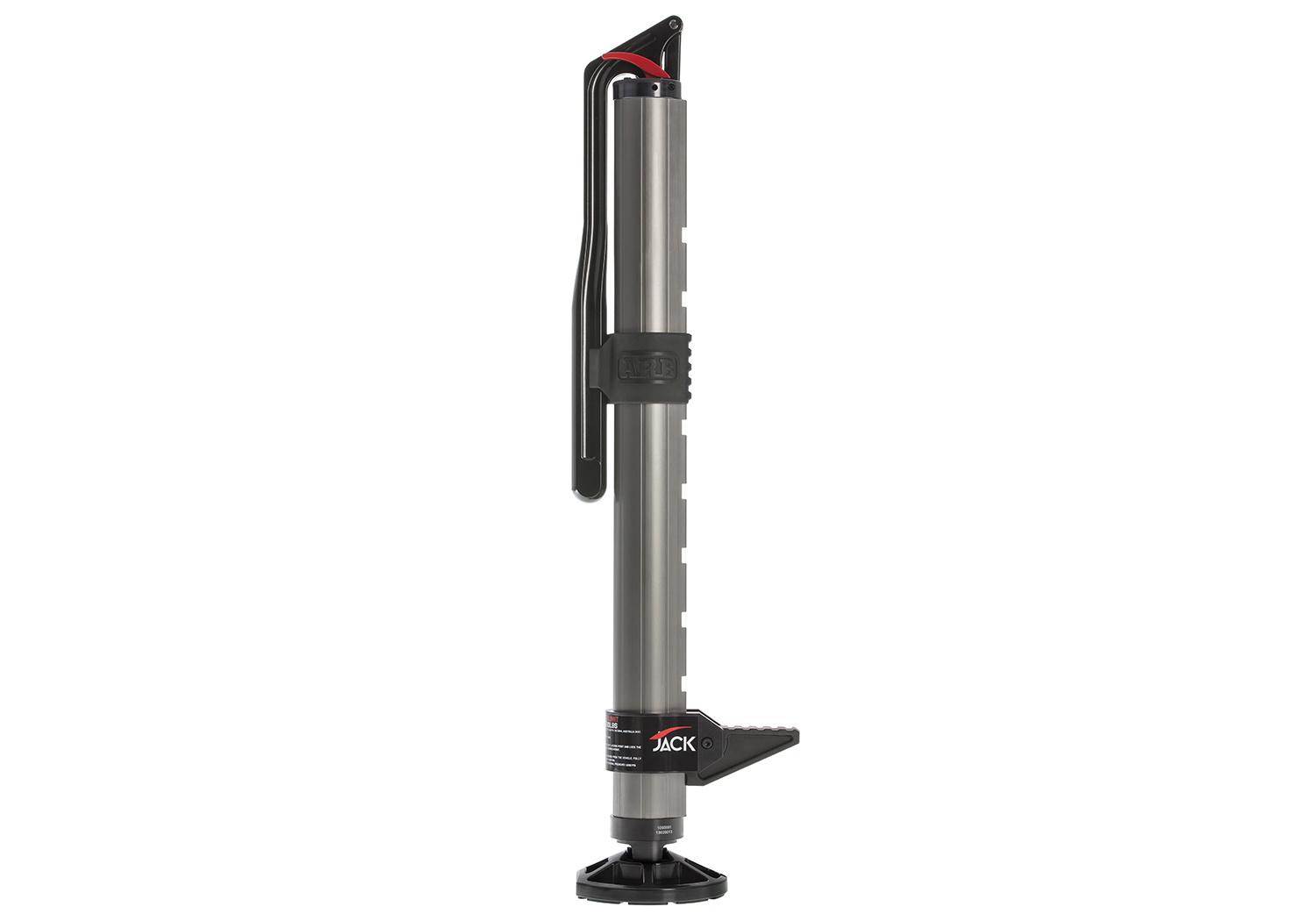

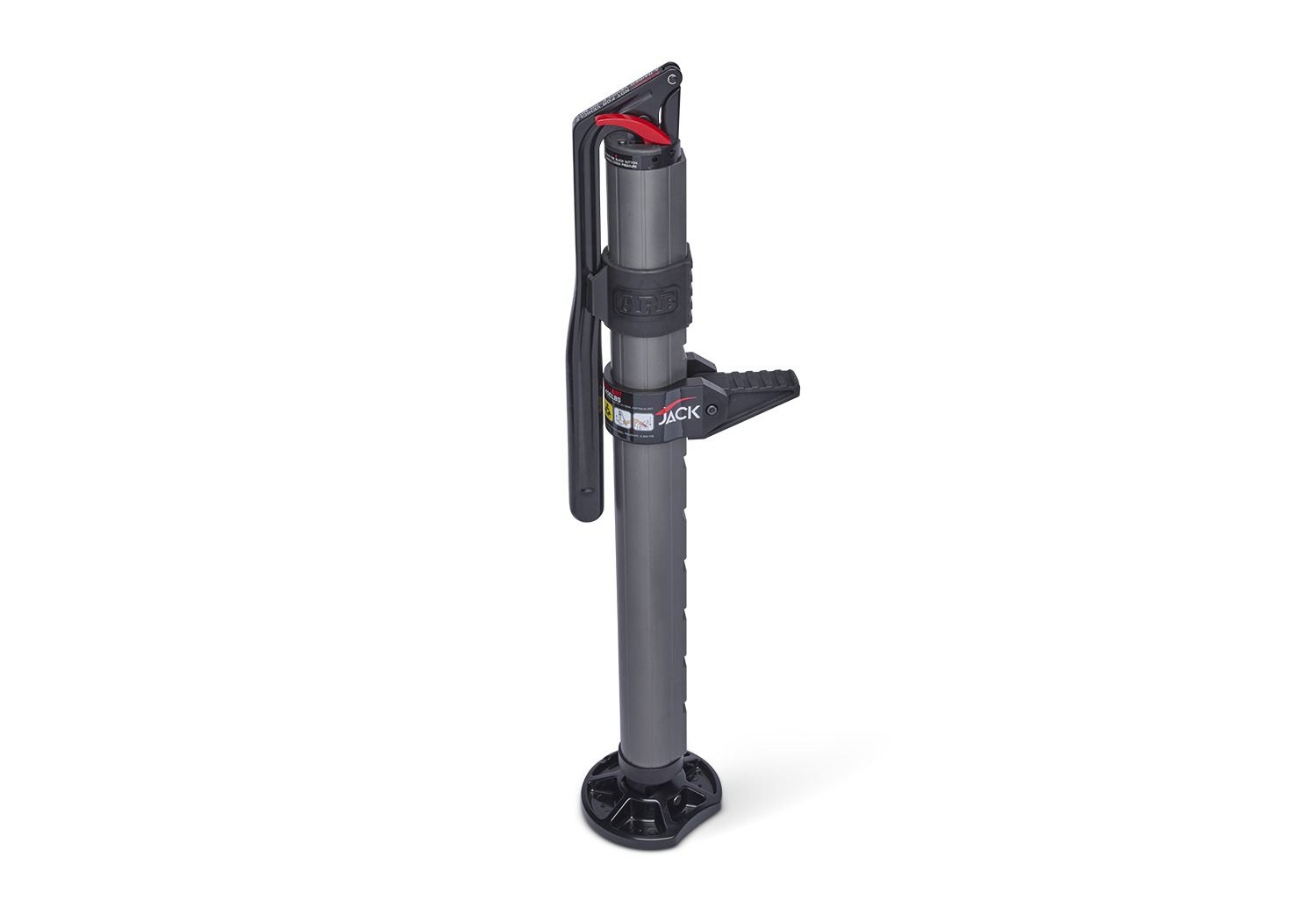

ARB Hydraulic Jack

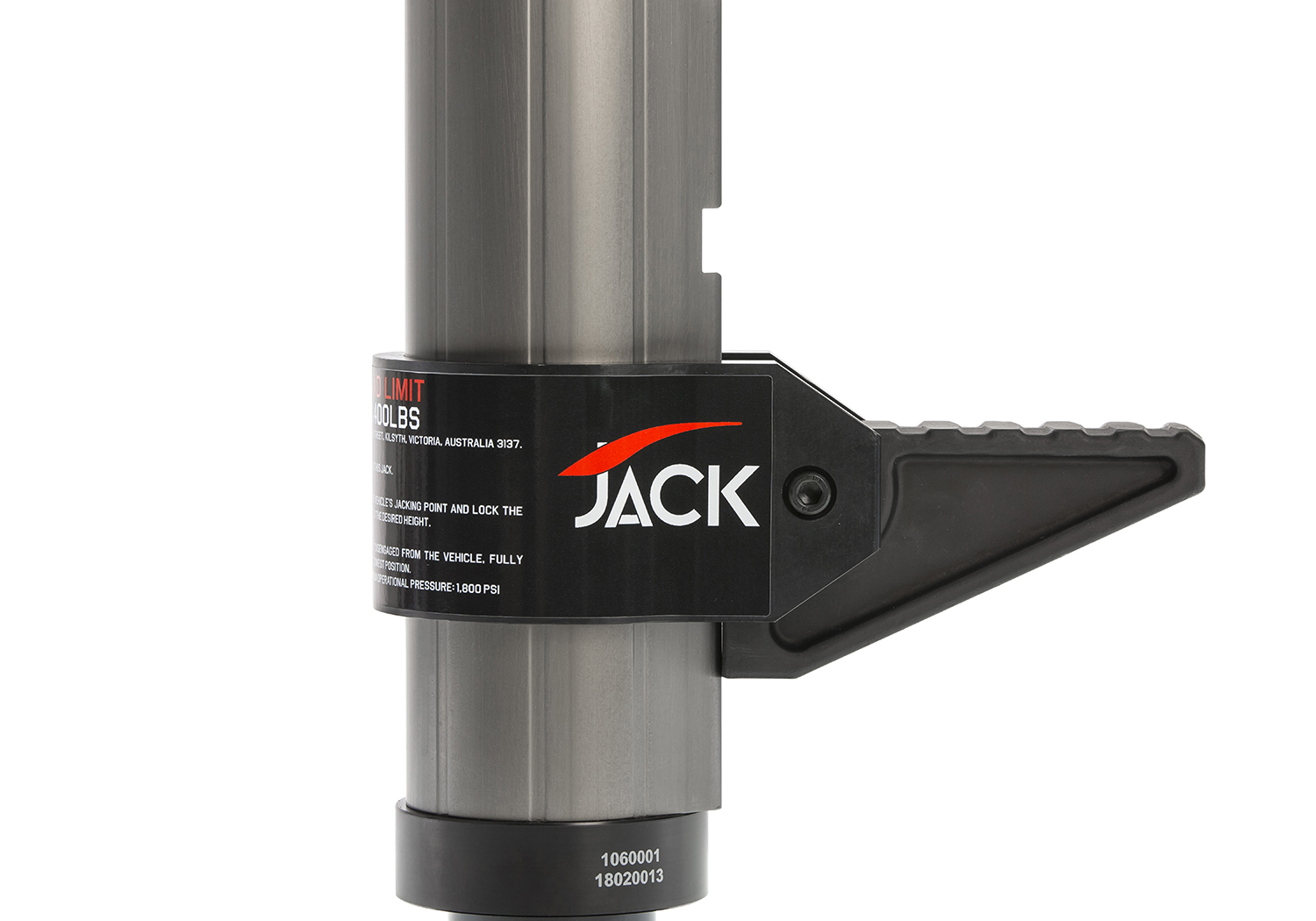

Built tough to take on the grunt of the most challenging recovery missions, the jack body is made from aircraft grade 6061 T6 Aluminum for maximum strength.  Running up the body, 9 hooking points offer the adjustable hook a wide range of lifting heights; capable of lifting up to a total of 4,400lbs.

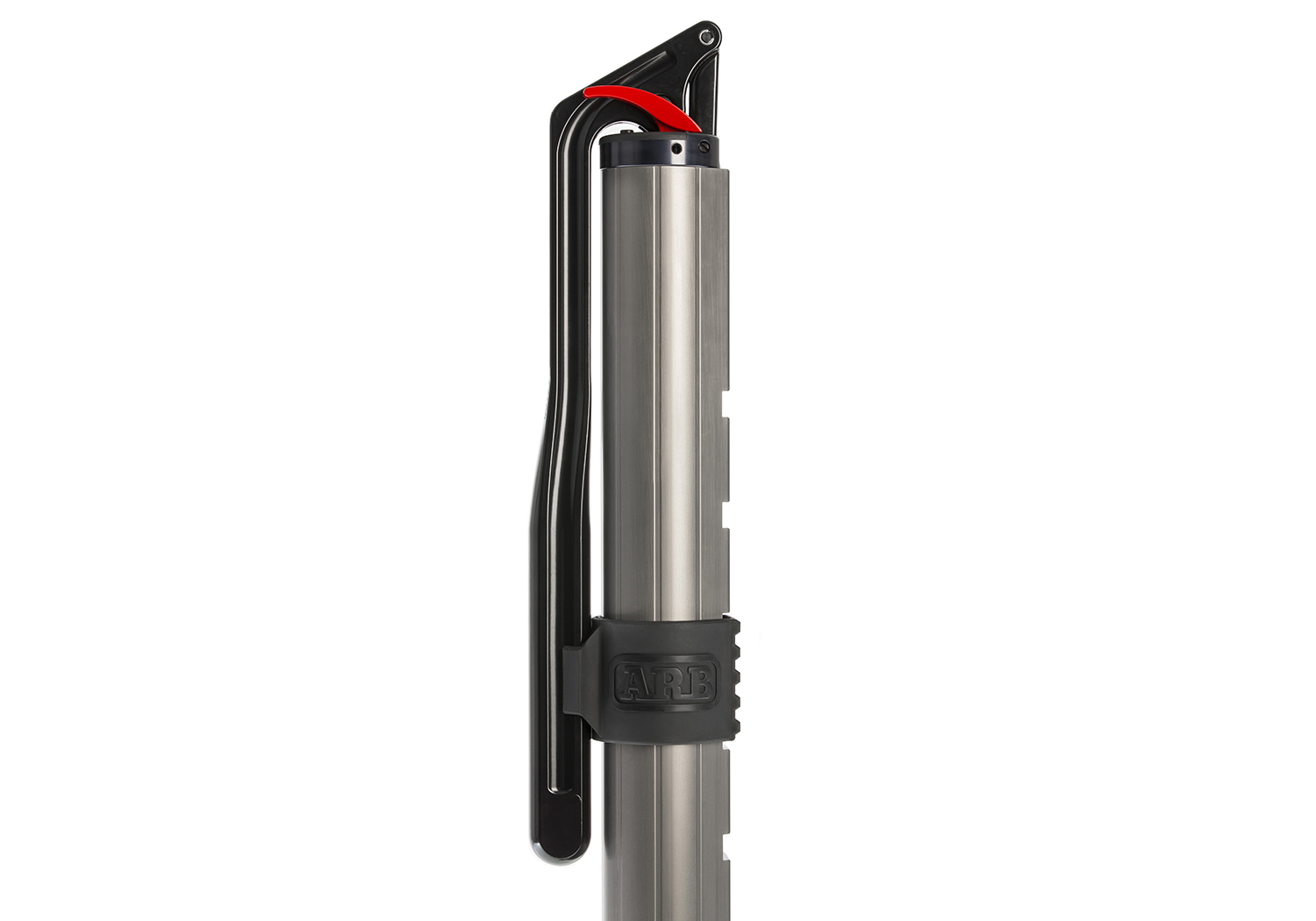

  • Hydraulic handle smoothly lifts the vehicle in 1/2" increments
  • Two-stage descent feature available with the push of the lever to allow for a slow or rapid descent
  • Internal blow-off valve provides overload protection
  • Jack body can be rotated 360 degrees to align the pivoting foot to match the terrain
  • Jack is intended to be used with aftermarket bumpers that have the appropriate provisions

SPECIFICATIONS
    • Min Lifting Height    - 6in
    • Max Lifting Height   - 28-48in
    • Travel                      - 21-22in
    • Lifting Range            - 6-4in
    • Max Capacity            - 4,409lbs
    • Compressed Height  - 35in
    • Extended Height        - 56in
    • Weight                      - 23lbs
    • Inches per Stroke      - .5 in
Part Type
Accessories: Off Road
Warranty Availability
Not Available
Package Dimensions
7.5" x 7.5" x 39"
Package Weight
30.25 lb(s)
UPC Code
756122017135
Country of Origin
Thailand
